Name: | Metal Hole Saw | Material: | 6542(M2),4241,4341, |
---|---|---|---|
Use: | Wood, Stainless Steel, Metal | Shank: | Triangle Shank |
Packing: | PVC Box | Type: | Center Drill Bit |
Color: | Black Oxide | Size: | 12-200mm |
High Light: | M2 hole saw cutter for stainless steel,25mm hole saw cutter for stainless steel,Triangle Shank sharp hole saw cutter |

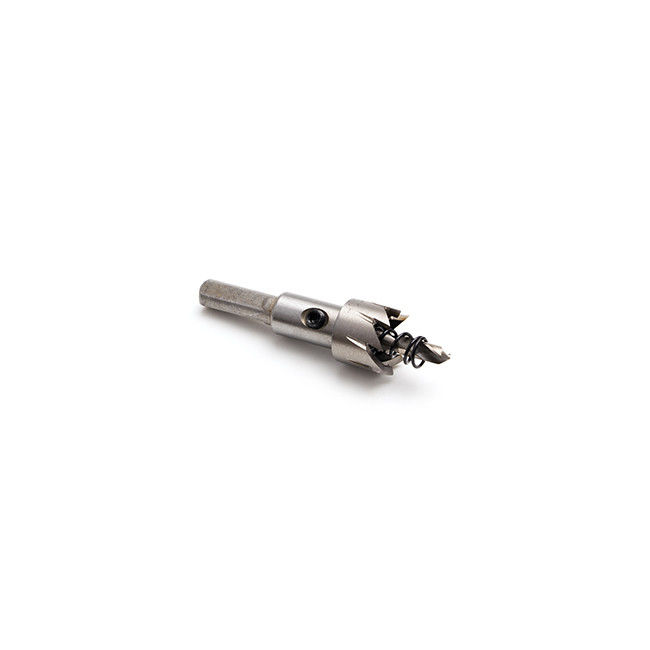

Triangle Shank Metal Hole Saw HSS Hole Saw Cutter For Stainless Steel
1. High Quality Material: Made from strong HHS high-speed-steel for durability, high hardness, fast cutting, impact resistance, wear high temperature
2. Sharp gears and anti-cutting with lower consumption make the product a long service life
3. Can be used for thick steel plates, cast iron, stainless steel, non-standard angle iron and other metal open hole. Perfect for installing locks, knobs on doors and cabinets, or drilling large diameter holes through desks, etc
4. Suitable for hand held electric drill, stand motor-driven drilling machine and mobile ribbon type magnetism drilling machine. Provide fast and precise cuts into stainless steel, sheet metal, cast iron, mild steel, aluminum, plastic,copper and brass
Feature

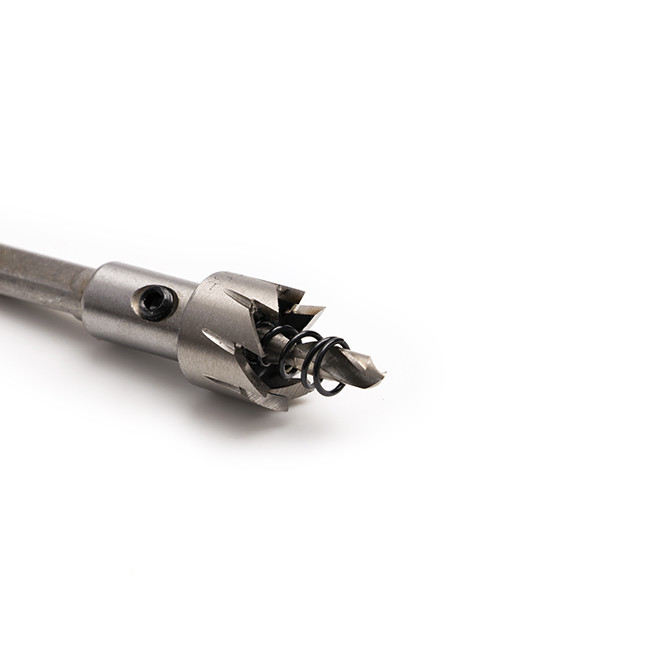

1. When drilling, the center drill penetrates the material to be processed first, as the axis, the drilling is more stable.
2. Special blade tooth grinding technology and high-strength substrate, strong perforation ability, prevent chattering, and improve drilling ability.
3. Triangular shank design, effectively prevent slipping in the process of drilling, strong torque resistance.
4. When the center drill becomes blunt, the center drill can be replaced and used.
product name: | HSS hole saw | |||||
specification: | 12-100mm | |||||
Material: | 4341,6542 High speed steel | |||||
use: | Suitable for opening holes on stainless steel, iron sheet, aluminum alloy and various pipes Suitable for hand drills and bench drills, easy to carry and decorate | |||||
specification | Hole diameter | Shank diameter | Center drill diameter | Total length |
φ12 | 12mm | 7.8mm | 5mm | 66mm |
φ13 | 13mm | 7.8mm | 5mm | 66mm |
φ14 | 14mm | 7.8mm | 5mm | 66mm |
φ15 | 15mm | 7.8mm | 5mm | 66mm |
φ16 | 16mm | 7.8mm | 5mm | 66mm |
φ17 | 17mm | 7.8mm | 5mm | 66mm |
φ17.5 | 17.5mm | 7.8mm | 5mm | 66mm |
φ18 | 18mm | 7.8mm | 5mm | 66mm |
φ19 | 19mm | 7.8mm | 5mm | 66mm |
φ19.5 | 19.5mm | 7.8mm | 5mm | 66mm |
φ20 | 20mm | 7.8mm | 5mm | 66mm |
φ20.5 | 20.5mm | 7.8mm | 5mm | 66mm |
φ21 | 21mm | 7.8mm | 5mm | 66mm |
φ21.5 | 21.5mm | 7.8mm | 5mm | 66mm |
φ22 | 22mm | 7.8mm | 5mm | 66mm |
φ22.5 | 22.5mm | 7.8mm | 5mm | 66mm |
φ23 | 23mm | 7.8mm | 5mm | 66mm |
φ24 | 24mm | 7.8mm | 5mm | 66mm |
φ25 | 25mm | 7.8mm | 5mm | 66mm |
φ25.5 | 25.5mm | 7.8mm | 5mm | 66mm |
φ26 | 26mm | 7.8mm | 5mm | 66mm |
φ27 | 27mm | 7.8mm | 5mm | 66mm |
φ28 | 28mm | 7.8mm | 5mm | 66mm |
φ30 | 30mm | 7.8mm | 5mm | 66mm |
φ32 | 32mm | 7.8mm | 5mm | 66mm |
φ35 | 35mm | 7.8mm | 5mm | 67mm |
φ38 | 38mm | 7.8mm | 5mm | 67mm |
φ40 | 40mm | 7.8mm | 5mm | 67mm |
φ42 | 42mm | 7.8mm | 5mm | 70mm |
φ45 | 45mm | 7.8mm | 5mm | 70mm |
φ50 | 50mm | 7.8mm | 5mm | 70mm |
φ53 | 53mm | 7.8mm | 5mm | 70mm |
φ55 | 55mm | 7.8mm | 5mm | 70mm |
φ60 | 60mm | 7.8mm | 5mm | 70mm |
φ65 | 65mm | 7.8mm | 5mm | 70mm |
φ70 | 70mm | 7.8mm | 5mm | 70mm |
φ75 | 75mm | 7.8mm | 5mm | 70mm |
φ80 | 80mm | 7.8mm | 5mm | 70mm |
