Hss 200mm Metal Hole Saw Cutting Sheetrock Pilot Drill Bit For Drilling

Basic Information
Place of Origin: Chongqing, China
Brand Name: ZhongZuan
Certification: ISO9001: 2015, CE
Model Number: A-11
Minimum Order Quantity: 100 pcs
Price: $0.36-0.4/pcs
Packaging Details: Plastic box
Delivery Time: 7-10 workday
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10,000 pcs/day
Product Name: Hss Hole Saw Pilot Drill Bit Type: Metal Hole Saw
Material: HSS Shank Type: Triangle Shank
Size: 12-200mm MOQ: 100pcs
Place Of Origin: Chongqing, China OEM Brand: OEM Brand
High Light:

Hss Metal Hole Saw

,

200mm Metal Hole Saw

,

Cutting Sheetrock Pilot Hole Saw Drill

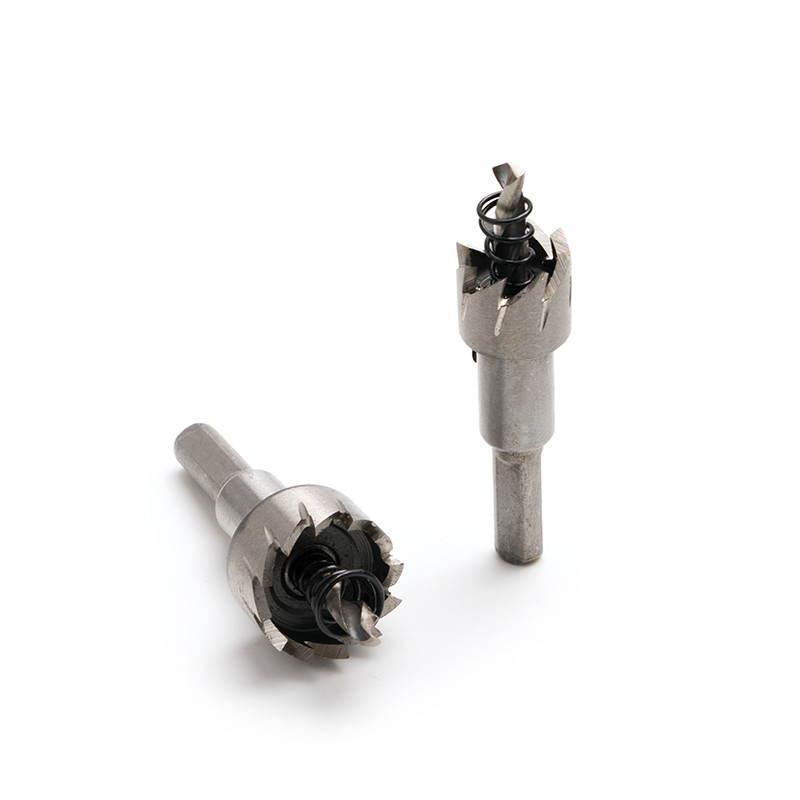

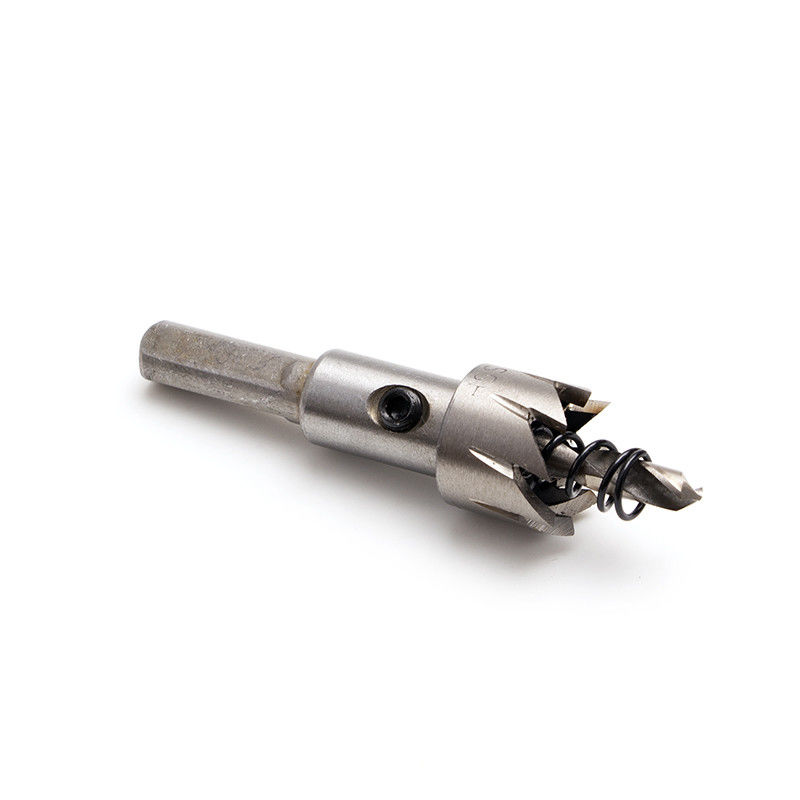

Hss Metal Cutting Sheetrock Hole Saw Pilot Drill Bit For Metal Drilling



High Speed Steel Metal Hole Saw drill bits are made of high quality HSS and suitable for opening holes on stainless steel, iron sheet, aluminum alloy and various pipes Suitable for hand drills and bench drills, easy to carry and decorate.



specification

Hss Metal Cutting Sheetrock Hole Saw Pilot Drill Bit For Metal Drilling
Type Metal hole saw/Center Drill Bit
Material Hss 6542 4341
Size

12-200mm

Shank Type Triangle handle
Finish Coating
Application For opening holes on stainless steel, iron sheet, aluminum alloy and various pipes.
Applicable Equipment Bench drill, hand drill, rechargeable drill
Brand Name ZhongZuan

Hss 200mm Metal Hole Saw Cutting Sheetrock Pilot Drill Bit For Drilling 0





Features

1. The hole drill bit for metal cutting has the ablity of center positioning, when drilling, the center drill penetrates the material to be processed first, as the axis, the drilling is more stable
2. Sharp and durable Special blade tooth grinding technology and high-strength substrate, strong perforation ability, prevent chattering, and improve drilling ability
3. Triangular anti-slip handle Triangular shank design, effectively prevent slipping in the process of drilling, strong torque resistance
4. Removable center drill When the center drill becomes blunt, the center drill can be replaced and used.

Hss 200mm Metal Hole Saw Cutting Sheetrock Pilot Drill Bit For Drilling 1

Size Information

Hss 200mm Metal Hole Saw Cutting Sheetrock Pilot Drill Bit For Drilling 2

specification
Hole diameter
Shank diameter
Center drill diameter
Total length
φ12
12mm
7.8mm
5mm
66mm
φ13
13mm
7.8mm
5mm
66mm
φ14
14mm
7.8mm
5mm
66mm
φ15
15mm
7.8mm
5mm
66mm
φ16
16mm
7.8mm
5mm
66mm
φ17
17mm
7.8mm
5mm
66mm
φ17.5
17.5mm
7.8mm
5mm
66mm
φ18
18mm
7.8mm
5mm
66mm
φ19
19mm
7.8mm
5mm
66mm
φ19.5
19.5mm
7.8mm
5mm
66mm
φ20
20mm
7.8mm
5mm
66mm
φ20.5
20.5mm
7.8mm
5mm
66mm
φ21
21mm
7.8mm
5mm
66mm
φ21.5
21.5mm
7.8mm
5mm
66mm
φ22
22mm
7.8mm
5mm
66mm
φ22.5
22.5mm
7.8mm
5mm
66mm
φ23
23mm
7.8mm
5mm
66mm
φ24
24mm
7.8mm
5mm
66mm
φ25
25mm
7.8mm
5mm
66mm
φ25.5
25.5mm
7.8mm
5mm
66mm
φ26
26mm
7.8mm
5mm
66mm
φ27
27mm
7.8mm
5mm
66mm
φ28
28mm
7.8mm
5mm
66mm
φ30
30mm
7.8mm
5mm
66mm
φ32
32mm
7.8mm
5mm
66mm
φ35
35mm
7.8mm
5mm
67mm
φ38
38mm
7.8mm
5mm
67mm
φ40
40mm
7.8mm
5mm
67mm
φ42
42mm
7.8mm
5mm
70mm
φ45
45mm
7.8mm
5mm
70mm
φ50
50mm
7.8mm
5mm
70mm
φ53
53mm
7.8mm
5mm
70mm
φ55
55mm
7.8mm
5mm
70mm
φ60
60mm
7.8mm
5mm
70mm
φ65
65mm
7.8mm
5mm
70mm
φ70
70mm
7.8mm
5mm
70mm
φ75
75mm
7.8mm
5mm
70mm
φ80
80mm
7.8mm
5mm
70mm





Application

Hss 6542 sheetrock hole saw drill bit suitable for opening holes on stainless steel, iron sheet, aluminum alloy and various pipes Suitable for hand drills and bench drills, easy to carry and decorate.

Note: Pay attention to the temperature when cutting cold and hard materials. If it is too high, add water. Please use it step by step when drilling, and do not use excessive force.

Hss 200mm Metal Hole Saw Cutting Sheetrock Pilot Drill Bit For Drilling 3

Packing& Delivery

Inner packaging of metal cutting hole saw drill bit is Plastic box(can be customized). Outer packing is carton by default.And we can stick your logo on the innerbox for free.

Hss 200mm Metal Hole Saw Cutting Sheetrock Pilot Drill Bit For Drilling 4

Hss 200mm Metal Hole Saw Cutting Sheetrock Pilot Drill Bit For Drilling 5

In order to deliver your goods faster and safer, we cooperate with multi-section logistics companies such as DHL, TNT, FedEx, EMS, etc.We have various transportation methods, support sea and air transportation, and strive to deliver your products to you faster and better. The delivery time from our factory to the port in China is about 2-3 days, the time for sea and air transportation is different. Air freight is about 5-15 days. Sea freight takes about 20-60 days. The specific time is related to your country region and logistics company.

Hss 200mm Metal Hole Saw Cutting Sheetrock Pilot Drill Bit For Drilling 6
