| Place of Origin: | Chongqing,China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | CE;ISO9001;2015; |
| Model Number: | T-004 |
| Minimum Order Quantity: | 200 |
| Price: | USD0.45/piece |
| Delivery Time: | 7-10 work day |
| Payment Terms: | T/T |
| Supply Ability: | 10,000pcs/day |
| Name: | YG 10 TCT Hole Saw Blade | Use: | Stainless Steel,cast Iron,aluminum,alloy,carbon Steel |
|---|---|---|---|
| Material: | YG10 +45# Steel | Type: | Center Drill Bit |
| OEM: | Available | Package: | PVC Box |
| Shank: | Triangle | Service: | One-stop Purchase |
| High Light: | 127mm carbide hole saw for metal,YG10 carbide hole saw for metal,75mm tct hole saw kit |
||
YG10 Stainless Steel Hole Saw Carbide Hole Saw For Metal
1. Applied in house installation, security doors and windows, electrical switch cabinets, stainless steel installation and other fields.
2. Suitable for 0.6mm-3mm stainless steel,cast iron,aluminum,aluminum alloy,carbon steel and so on.
Campany profile
1. 26-year Industrial experience and covers area of 11700㎡ with 6 workshops
2. Procucts can be made as you required and OEM/ODM
3. Free samples can be sent for evaluation
4. Professional before&after-sales teams 24h-online to solve your any technical problems.
| Brand: | ZHONGZUAN | |||||||
| Product | YG10 Lengthen Carbide hole saw | |||||||
| Material: | Hard alloy | |||||||
| Specification: | 12-127mm | |||||||
| Use: | Hand drill, magnetic base drill, bench drill, etc. | |||||||
|
Features: |
The product adopts cemented carbide materials, and is precisely developed by a fully automatic machining center and a grinding center. The unique edge grinding process is sharp and wear-resistant. It has the characteristics of good chip removal, fast speed,not easy to break the knife, and high durability. | |||||||
| Hole diameter | Center drill diameter | Shank diameter | Hole depth | Total length |
| 12mm | 5mm | 10mm | 20mm | 75mm |
| 13mm | 6mm | 10mm | 20mm | 75mm |
| 14mm | 6mm | 10mm | 20mm | 75mm |
| 15mm | 6mm | 10mm | 20mm | 75mm |
| 16mm | 6mm | 10mm | 20mm | 75mm |
| 17mm | 6mm | 10mm | 20mm | 75mm |
| 17.5mm | 6mm | 10mm | 20mm | 75mm |
| 18mm | 6mm | 10mm | 20mm | 75mm |
| 18.5mm | 6mm | 10mm | 20mm | 75mm |
| 19mm | 6mm | 10mm | 20mm | 75mm |
| 19.5mm | 6mm | 10mm | 20mm | 75mm |
| 20mm | 6mm | 10mm | 20mm | 75mm |
| 20.5mm | 6mm | 10mm | 20mm | 75mm |
| 21mm | 6mm | 10mm | 20mm | 75mm |
| 22mm | 6mm | 10mm | 20mm | 75mm |
| 22.5mm | 6mm | 10mm | 20mm | 75mm |
| 23mm | 6mm | 10mm | 20mm | 75mm |
| 24mm | 6mm | 10mm | 20mm | 75mm |
| 25mm | 6mm | 10mm | 20mm | 75mm |
| 26mm | 6mm | 10mm | 20mm | 75mm |
| 28mm | 6mm | 10mm | 20mm | 75mm |
| 29mm | 6mm | 10mm | 20mm | 75mm |
| 30mm | 6mm | 10mm | 20mm | 75mm |
| 31mm | 6mm | 10mm | 20mm | 75mm |
| 32mm | 6mm | 10mm | 20mm | 75mm |
| 33mm | 6mm | 10mm | 20mm | 75mm |
| 34mm | 6mm | 10mm | 20mm | 75mm |
| 35mm | 6mm | 10mm | 20mm | 75mm |
| 36mm | 6mm | 10mm | 20mm | 75mm |
| 37mm | 6mm | 10mm | 20mm | 75mm |
| 38mm | 6mm | 10mm | 20mm | 75mm |
| 39mm | 6mm | 10mm | 20mm | 75mm |
| 40mm | 6mm | 10mm | 20mm | 75mm |
| 42mm | 6mm | 10mm | 20mm | 75mm |
| 43mm | 6mm | 10mm | 20mm | 75mm |
| 45mm | 6mm | 10mm | 20mm | 75mm |
| 46mm | 6mm | 10mm | 20mm | 75mm |
| 47mm | 6mm | 10mm | 20mm | 75mm |
| 48mm | 6mm | 10mm | 20mm | 75mm |
| 50mm | 6mm | 10mm | 20mm | 75mm |
| 51mm | 6mm | 10mm | 20mm | 75mm |
| 53mm | 6mm | 10mm | 20mm | 75mm |
| 55mm | 6mm | 10mm | 20mm | 75mm |
| 57mm | 6mm | 10mm | 20mm | 75mm |
| 58mm | 6mm | 10mm | 20mm | 75mm |
| 60mm | 6mm | 10mm | 20mm | 75mm |
| 63mm | 6mm | 10mm | 20mm | 75mm |
| 65mm | 6mm | 10mm | 20mm | 75mm |
| 70mm | 6mm | 10mm | 20mm | 75mm |
| 75mm | 6mm | 10mm | 20mm | 75mm |
| 80mm | 6mm | 10mm | 20mm | 75mm |
| 85mm | 6mm | 10mm | 20mm | 75mm |
| 90mm | 6mm | 10mm | 20mm | 75mm |
| 95mm | 6mm | 10mm | 20mm | 75mm |
| 100mm | 6mm | 10mm | 20mm | 75mm |
| 105mm | 6mm | 10mm | 20mm | 75mm |
| 110mm | 6mm | 10mm | 20mm | 75mm |
| 115mm | 6mm | 10mm | 20mm | 75mm |
| 120mm | 6mm | 10mm | 20mm | 75mm |
| 125mm | 6mm | 10mm | 20mm | 75mm |
| 127mm | 6mm | 10mm | 20mm | 75mm |
1. TCT Hard Alloy: The substrate base is made of 45# steel improves largely the service life.
2. Alloy forged blade: sharp edge/neat and smooth opening without broke edges/low cut resistance
3. Blade forward design: Front and back angle tooth design, low resistance and strong perforation ability.

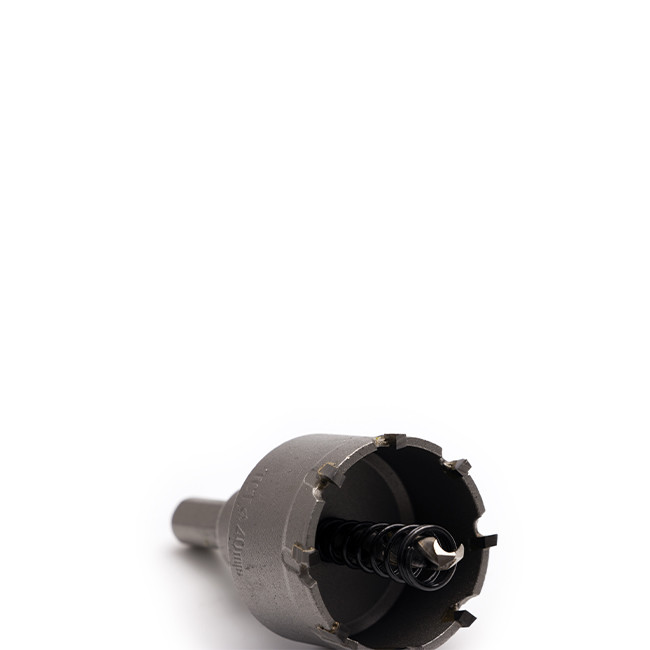

4. Center drill spring design: Spring design,relatively stable feed to avoid sudden feed damage to the drill bit

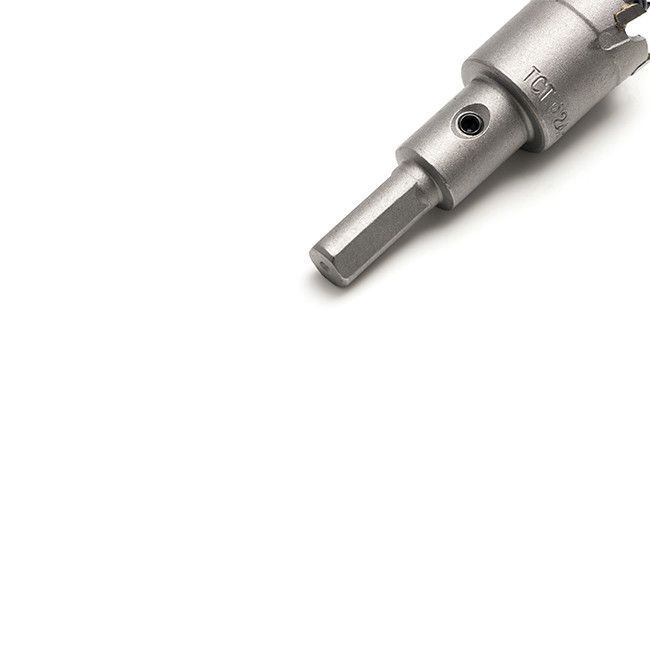

5. Non-slip shank: Triangle shank allows it to be held more tightly.
Note: Pay attention to the temperature when cutting cold and hard materials. If the temperature is too high, water needs to be added. Please use it step by step when drilling, do not use excessive force.

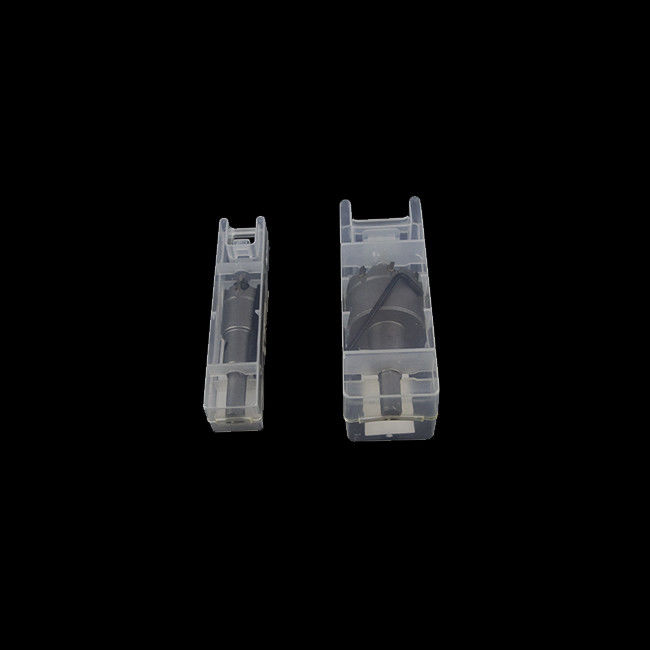

Packing&Delivery
We have cooperated with DHLUPS,TNT Fedex,China Post and other sea shipping agent,thus we can quote the most economical shipping charge for you.

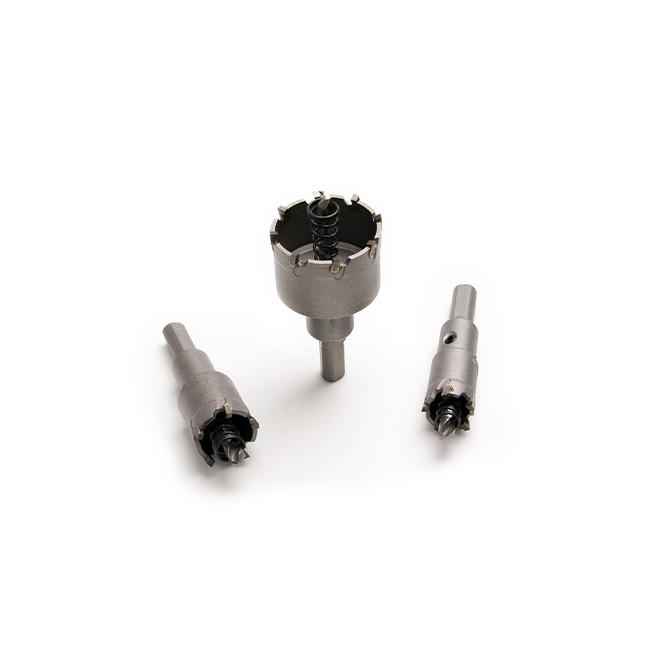

Real product
