Gray Carbide Tipped Hole Cutter Carbide Hole Saw For Stainless Steel

Basic Information
Place of Origin: Chongqing,China
Brand Name: ZhongZuan
Certification: CE;ISO9001;2015;
Model Number: T-004
Minimum Order Quantity: 200
Price: USD0.44/piece
Delivery Time: 7-10 work day
Payment Terms: T/T
Supply Ability: 10,000pcs/day
Name: YG10 Lengthen Carbide Hole Saw Use: Metal Drilling, Stainless Steel Opening
Material: Hard Alloy Type: Center Drill Bit
Size: 12-127mm Package: PVC Box
Shank: Triangle Color: Gray
High Light:

Gray carbide tipped hole cutter

,

YG10 carbide tipped hole cutter

,

4 inch hole saw for stainless steel

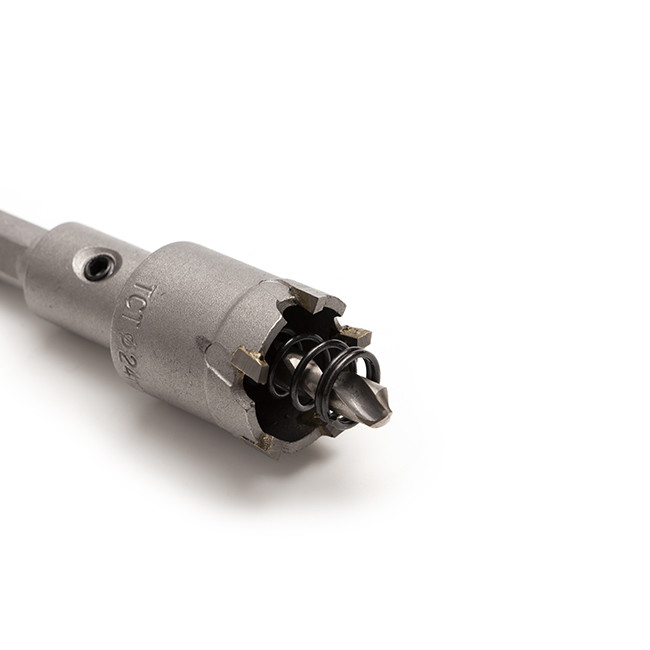

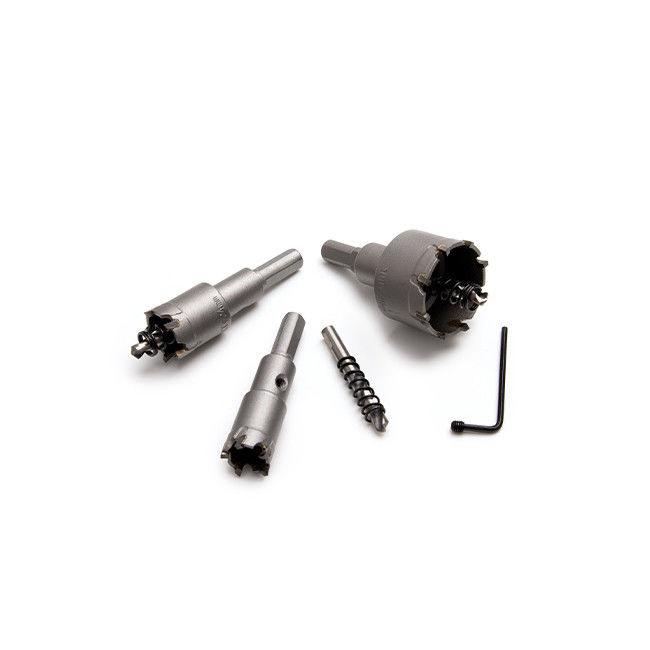

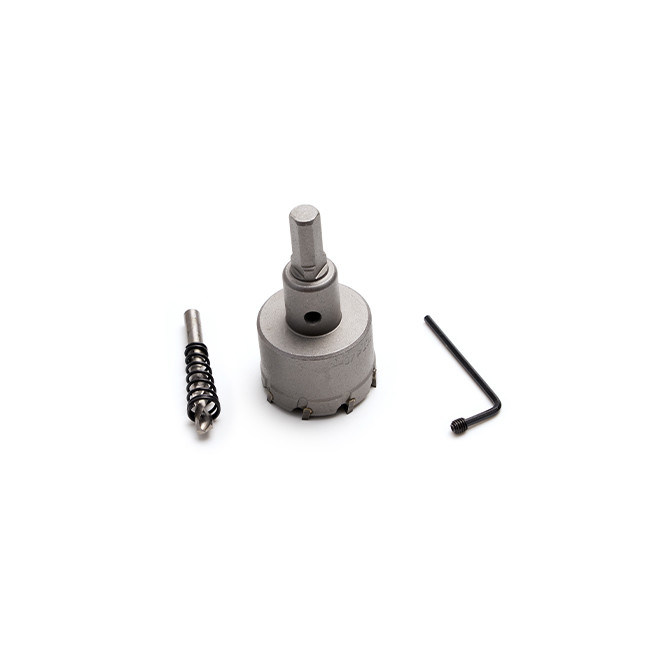

Gray Carbide Tipped Hole Cutter Carbide Hole Saw For Stainless Steel





1. U-Carbon alloy metal series hole opener, durable, without any disadvantages, suitable for stainless steel plate with a thickness of 3 mm or less, and metal plate with a thickness of 5 mm or less.
2. The black-carbon alloy technology creates a long life: high-quality black-carbon alloy material creates a long-term use. 3. The long life and excellent welding process prevent the sawtooth from breaking.
4. Optimized tooth profile design, easy and efficient drilling: Optimized cutter tooth angle and drainage design, chip removal more smoothly, special cutter tooth grinding technology and fine tooth design, effectively reducing cutting resistance.
5. Cooperate with stepped centering drill to protect saw teeth and automatically eject cutting waste.
Stepped centering drill: protect the saw teeth from direct impact when drilling through the material in the center





Factory profile



Zhongzuan was founded in 1995 and has 26 years of industry experience, focusing on the research and development and manufacturing of hole saws and drills for power tools. With professional technicians and experienced machine tool operators, it can produce products with complex shapes and high precision requirements. The after-sales team can quickly deal with customer issues such as product quality and after-sales. The company is equipped with more than one hundred numerical control equipment and more than ten sophisticated testing equipment to ensure the stable quality of products during mass production. The products implement strict standards in raw material procurement, processing, quality testing, and shipment, so that the products are in Obvious competitiveness in the international market enables our customers to open up larger markets and obtain more profits through re-drilled products.





 Brand:  ZHONGZUAN
 Product   YG10 Lengthen Carbide hole saw
 Material:  Hard alloy
 Specification:  12-127mm
 Use:  Hand drill, magnetic base drill, bench drill, etc.

Features:

 The product adopts cemented carbide materials, and is precisely developed by a fully automatic machining center and a grinding center. The unique edge grinding process is sharp and wear-resistant. It has the characteristics of good chip removal, fast speed,not easy to break the knife, and high durability.










Product specifications



Hole diameter Center drill diameter Shank diameter Hole depth Total length
12mm 5mm 10mm 20mm 75mm
13mm 6mm 10mm 20mm 75mm
14mm 6mm 10mm 20mm 75mm
15mm 6mm 10mm 20mm 75mm
16mm 6mm 10mm 20mm 75mm
17mm 6mm 10mm 20mm 75mm
17.5mm 6mm 10mm 20mm 75mm
18mm 6mm 10mm 20mm 75mm
18.5mm 6mm 10mm 20mm 75mm
19mm 6mm 10mm 20mm 75mm
19.5mm 6mm 10mm 20mm 75mm
20mm 6mm 10mm 20mm 75mm
20.5mm 6mm 10mm 20mm 75mm
21mm 6mm 10mm 20mm 75mm
22mm 6mm 10mm 20mm 75mm
22.5mm 6mm 10mm 20mm 75mm
23mm 6mm 10mm 20mm 75mm
24mm 6mm 10mm 20mm 75mm
25mm 6mm 10mm 20mm 75mm
26mm 6mm 10mm 20mm 75mm
28mm 6mm 10mm 20mm 75mm
29mm 6mm 10mm 20mm 75mm
30mm 6mm 10mm 20mm 75mm
31mm 6mm 10mm 20mm 75mm
32mm 6mm 10mm 20mm 75mm
33mm 6mm 10mm 20mm 75mm
34mm 6mm 10mm 20mm 75mm
35mm 6mm 10mm 20mm 75mm
36mm 6mm 10mm 20mm 75mm
37mm 6mm 10mm 20mm 75mm
38mm 6mm 10mm 20mm 75mm
39mm 6mm 10mm 20mm 75mm
40mm 6mm 10mm 20mm 75mm
42mm 6mm 10mm 20mm 75mm
43mm 6mm 10mm 20mm 75mm
45mm 6mm 10mm 20mm 75mm
46mm 6mm 10mm 20mm 75mm
47mm 6mm 10mm 20mm 75mm
48mm 6mm 10mm 20mm 75mm
50mm 6mm 10mm 20mm 75mm
51mm 6mm 10mm 20mm 75mm
53mm 6mm 10mm 20mm 75mm
55mm 6mm 10mm 20mm 75mm
57mm 6mm 10mm 20mm 75mm
58mm 6mm 10mm 20mm 75mm
60mm 6mm 10mm 20mm 75mm
63mm 6mm 10mm 20mm 75mm
65mm 6mm 10mm 20mm 75mm
70mm 6mm 10mm 20mm 75mm
75mm 6mm 10mm 20mm 75mm
80mm 6mm 10mm 20mm 75mm
85mm 6mm 10mm 20mm 75mm
90mm 6mm 10mm 20mm 75mm
95mm 6mm 10mm 20mm 75mm
100mm 6mm 10mm 20mm 75mm
105mm 6mm 10mm 20mm 75mm
110mm 6mm 10mm 20mm 75mm
115mm 6mm 10mm 20mm 75mm
120mm 6mm 10mm 20mm 75mm
125mm 6mm 10mm 20mm 75mm
127mm 6mm 10mm 20mm 75mm
