| Place of Origin: | Chongqing,China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | CE;ISO9001;2015; |
| Model Number: | T-005 |
| Minimum Order Quantity: | 500 |
| Price: | USD0.67/piece |
| Delivery Time: | 7-10 work day |
| Payment Terms: | T/T |
| Supply Ability: | 10,000pcs/day |
| Product: | Carbide Hole Cutter | Application: | Metal,Stainless Steel |
|---|---|---|---|
| Processing: | Higt Frequency Welded | Material: | K20 Alloy + Steel Shank |
| Shank: | Triangle | Size: | 12-200mm |
| Packing: | PVC Box | Supply Mode: | Factory Direct Supply |
| OEM: | Acceptable | Brand: | ZhongZuan |
| High Light: | 100mm Carbide Hole Saws,20mm Carbide Hole Saws,TCT tungsten carbide tipped hole saw |
||

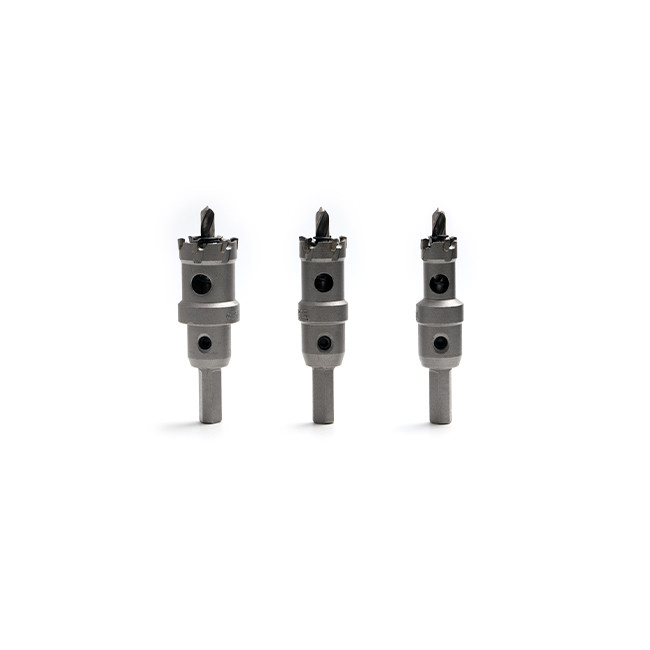

Stainless Steel Hole Cutter TCT Tungsten Tipped Carbide Hole Saw
1. Wide Application:Ideal for stainless steel,metal,iron,wood and so on.Remember to add coolant during continuous high-speed drilling.
2. High Quality Material:Our hole saw is made of high quality Cemented Carbide, ensures its high hardness,rust proof and sturdy.
3. Increase Efficiency: With outer blade,middle blade,inner blade,small incision resistance and no burrs during drilling.Opening neat, smooth,no broken edges,no tremor phenomenon,chip easily.
| Product name: | High quality K20 carbide stainless steel hole saw | ||||
| Brand: | ZHONGZUAN | ||||
| Material: | K20 hard alloy/45# steel | ||||
| Colour: | Steel primary color | ||||
| Size: | 14-100mm, the size can be customized according to your requirements | ||||
| Hole depth: | 20mm | ||||
| Shank body: | Triangular shank | ||||
| Package: | Plastic box, can be customized | ||||
| Use: | Used for cutting stainless steel, iron, aluminum alloy, copper and other metal materials | ||||
Product Parameter
| Hole diameter (mm) | Hole diameter (inch) | Center drill diameter | Shank diameter | Depth of opening | Total length |
| 12 | 15/32" | 6mm | 10mm | 20mm | 80mm |
| 13 | 33/64" | 6mm | 10mm | 20mm | 80mm |
| 14 | 35/64" | 6mm | 10mm | 20mm | 80mm |
| 15 | 19/32" | 6mm | 10mm | 20mm | 80mm |
| 16 | 5/8" | 6mm | 10mm | 20mm | 80mm |
| 17 | 43/64" | 6mm | 10mm | 20mm | 80mm |
| 18 | 45/64" | 6mm | 10mm | 20mm | 80mm |
| 19 | 3/4" | 6mm | 10mm | 20mm | 80mm |
| 19.5 | 49/64" | 6mm | 10mm | 20mm | 80mm |
| 20 | 25/32" | 6mm | 10mm | 20mm | 80mm |
| 21 | 53/64" | 6mm | 10mm | 20mm | 80mm |
| 22 | 55/64" | 6mm | 10mm | 20mm | 80mm |
| 23 | 29/32" | 6mm | 10mm | 20mm | 80mm |
| 24 | 15/16" | 6mm | 10mm | 20mm | 80mm |
| 25 | 63/64" | 6mm | 10mm | 20mm | 80mm |
| 26 | 1 1/32" | 6mm | 10mm | 20mm | 80mm |
| 28 | 1 7/64" | 6mm | 10mm | 20mm | 80mm |
| 30 | 1 3/16" | 6mm | 10mm | 20mm | 80mm |
| 32 | 1 17/64" | 6mm | 10mm | 20mm | 80mm |
| 35 | 1 3/8" | 6mm | 10mm | 20mm | 80mm |
| 38 | 1 1/2" | 6mm | 10mm | 20mm | 80mm |
| 40 | 1 37/64" | 6mm | 10mm | 20mm | 80mm |
| 45 | 1 49/64" | 6mm | 10mm | 20mm | 80mm |
| 50 | 1 31/32" | 6mm | 10mm | 20mm | 80mm |
| 53 | 2 3/32" | 6mm | 10mm | 20mm | 80mm |
| 55 | 2 11/64" | 6mm | 10mm | 20mm | 80mm |
| 60 | 2 23/64" | 6mm | 10mm | 20mm | 80mm |
| 65 | 2 9/16" | 6mm | 10mm | 20mm | 80mm |
| 70 | 2 3/4" | 6mm | 10mm | 20mm | 80mm |
| 75 | 2 61/64" | 6mm | 10mm | 20mm | 80mm |
| 80 | 3 5/32" | 6mm | 10mm | 20mm | 80mm |
| 85 | 3 11/32" | 6mm | 10mm | 20mm | 80mm |
| 90 | 3 35/64" | 6mm | 10mm | 20mm | 80mm |
| 95 | 3 47/64" | 6mm | 10mm | 20mm | 80mm |
| 100 | 3 15/16" | 6mm | 10mm | 20mm | 80mm |
| 105 | 4 9/64" | 6mm | 10mm | 20mm | 80mm |
| 110 | 4 21/64" | 6mm | 10mm | 20mm | 80mm |
| 115 | 4 17/32" | 6mm | 10mm | 20mm | 80mm |
| 120 | 4 23/32" | 6mm | 10mm | 20mm | 80mm |
| 125 | 4 59/64" | 6mm | 10mm | 20mm | 80mm |
| 130 | 5 1/8" | 6mm | 10mm | 20mm | 80mm |
| 135 | 5 5/16" | 6mm | 10mm | 20mm | 80mm |
| 140 | 5 33/64" | 6mm | 10mm | 20mm | 80mm |
| 145 | 5 45/64" | 6mm | 10mm | 20mm | 80mm |
| 150 | 5 29/32" | 6mm | 10mm | 20mm | 80mm |
| 155 | 6 7/64" | 6mm | 10mm | 20mm | 80mm |
| 160 | 6 19/64" | 6mm | 10mm | 20mm | 80mm |
| 165 | 6 1/2" | 6mm | 10mm | 20mm | 80mm |
| 170 | 6 11/16" | 6mm | 10mm | 20mm | 80mm |
| 175 | 6 57/64" | 6mm | 10mm | 20mm | 80mm |
| 180 | 7 3/32" | 6mm | 10mm | 20mm | 80mm |
| 185 | 7 9/32" | 6mm | 10mm | 20mm | 80mm |
| 190 | 7 31/64" | 6mm | 10mm | 20mm | 80mm |
| 195 | 7 43/64" | 6mm | 10mm | 20mm | 80mm |
| 200 | 7 7/8" | 6mm | 10mm | 20mm | 80mm |
Product Parts
Application
