| Place of Origin: | Chongqing,China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | CE;ISO9001;2015; |
| Model Number: | C-003 |
| Minimum Order Quantity: | 200 |
| Price: | USD0.41/piece |
| Delivery Time: | 7-10 work day |
| Payment Terms: | T/T |
| Supply Ability: | 10,000pcs/day |
| Product: | Carbide Hole Saw | Use: | Metal Drilling, Stainless Steel Opening |
|---|---|---|---|
| Type: | Carbide Drill Bit | Material: | Hard Alloy |
| Size: | 15-100mm | Package: | PVC Box |
| Shank: | Triangle | Color: | Gray |
| High Light: | ISO9001 carbide tipped hole saw for metal,15mm carbide tipped hole saw for metal,Gray 3 inch carbide hole saw |
||
Carbide Tipped Hole Cutter Carbide Hole Saw For Aluminum Alloy
1. TCT Tungsten Carbide Tipped to keep Long performance life and teeth remain sharp longer
2. Three blade design to keep high efficiency cutting hole and High precision hole drilling
3. Better chip removal: Spring can protect the core drill and teeth to auto popup the cutting waste.
4. Use in drilling thick stainless steel, general steel,angle steel,aluminum,copper,cast iron,channel steel etc.
| Brand: | ZHONGZUAN | ||||||||
| Product | Hard alloy sheet hole drill | ||||||||
| Material: | Hard alloy | ||||||||
| Specification: | 15-100mm | ||||||||
| Use: | Hand drill, magnetic base drill, bench drill, etc. | ||||||||
| Feature: | The product adopts cemented carbide materials, and is precisely developed by a fully automatic machining center and a grinding center. The unique edge grinding process is sharp and wear-resistant. It has the characteristics of good chip removal, fast speed,not easy to break the knife, and high durability. | ||||||||
| Hole diameter | Center drill diameter | Shank diameter | Handle length | Hole depth | Total length |
| 15mm | 5mm | 10mm | 18mm | 15mm | 57mm |
| 16mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 17mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 18mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 19mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 19.5mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 20mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 21mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 22mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 22.5mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 23mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 24mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 25mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 25.5mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 26mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 28mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 30mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 32mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 35mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 38mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 40mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 42mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 45mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 50mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 55mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 60mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 65mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 70mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 75mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 80mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 85mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 90mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 95mm | 6mm | 10mm | 18mm | 15mm | 57mm |
| 100mm | 6mm | 10mm | 18mm | 15mm | 57mm |
1. TCT Hard Alloy: The substrate base is made of 45# steel improves largely the service life.
2. Alloy forged blade: sharp edge/neat and smooth opening without broke edges/low cut resistance
3. Blade forward design: Front and back angle tooth design, low resistance and strong perforation ability.
4. Center drill spring design: Spring design,relatively stable feed to avoid sudden feed damage to the drill bit
5. Non-slip shank: Triangle shank allows it to be held more tightly.
Note: Pay attention to the temperature when cutting cold and hard materials. If the temperature is too high, water needs to be added. Please use it step by step when drilling, do not use excessive force.

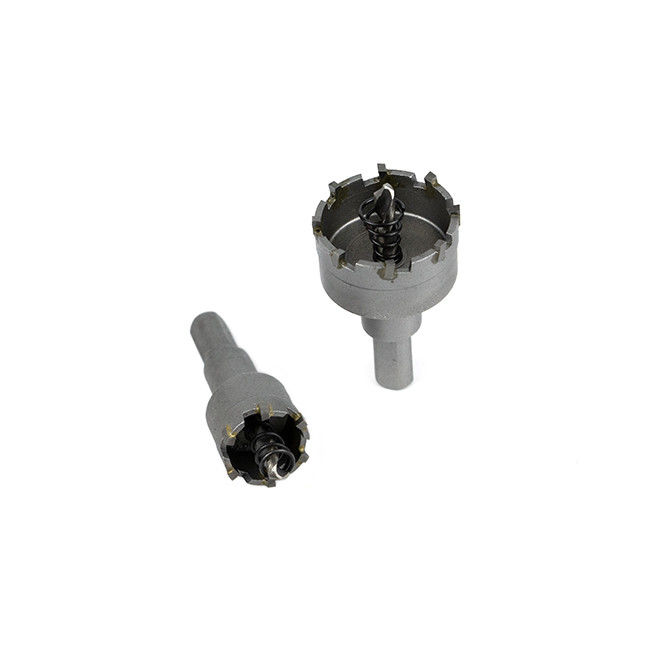

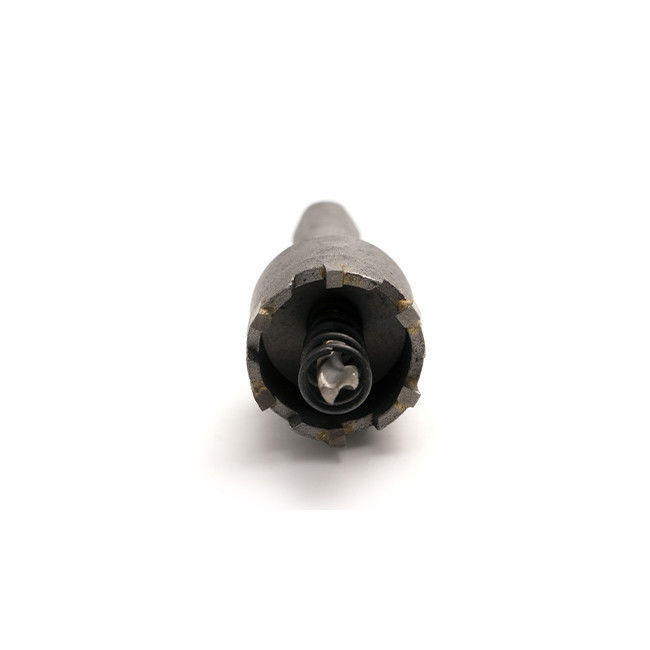

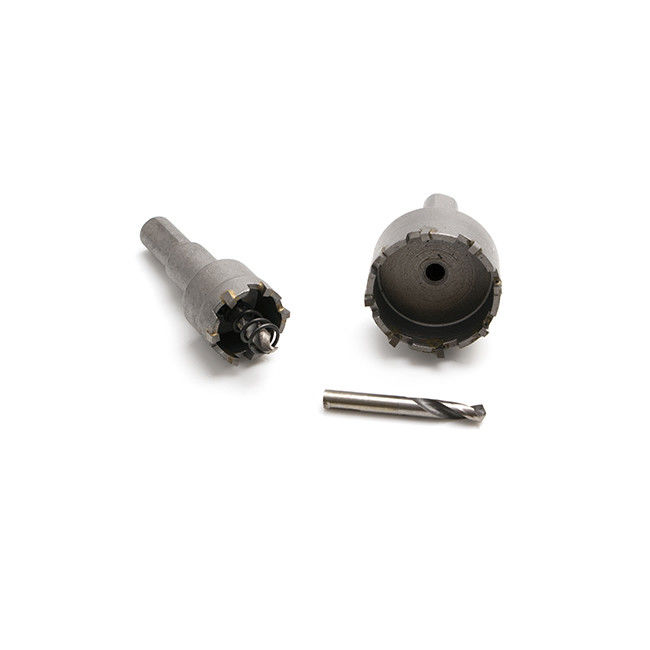

Real Product
