| Place of Origin: | Chongqing,China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | CE;ISO9001;2015; |
| Model Number: | T-005 |
| Minimum Order Quantity: | 500 |
| Price: | USD0.67/piece |
| Delivery Time: | 7-10 work day |
| Payment Terms: | T/T |
| Supply Ability: | 10,000pcs/day |
| Product: | Carbide Hole Cutter | Application: | Metal,Stainless Steel |
|---|---|---|---|
| Processing: | Higt Frequency Welded | Material: | K20 Alloy + Steel Shank |
| Shank: | Triangle | Size: | 12-200mm |
| Packing: | PVC Box | Sample: | Available |
| High Light: | TCT Alloy Carbide Hole Saw,K20 Carbide Hole Saw,14mm carbide hole saw for stainless steel |
||

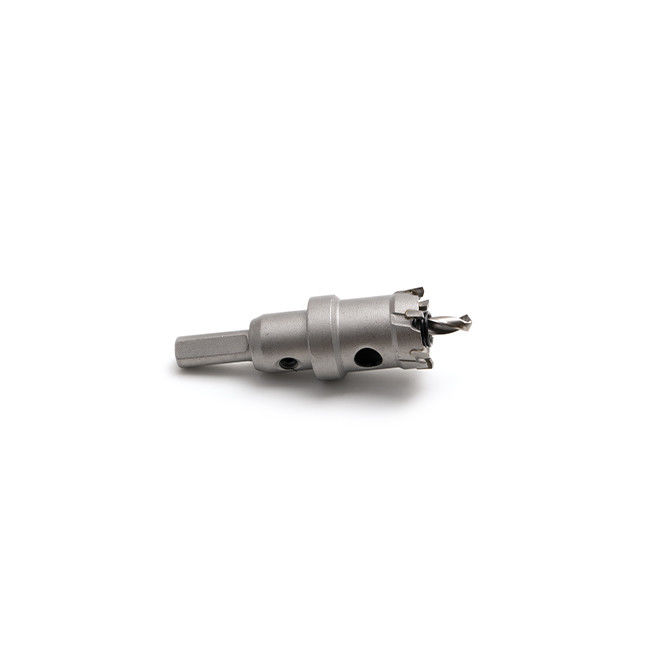

K20 Tct Hole Saw Cutter Alloy Carbide Hole Saw For Stainless Steel
1) Made of premium Tungsten Carbide).
2) Sharper teeth with high hardness for easily locating and cutting.
3) Cutting accurate, tidy and smooth holes, no broken edges and no tremor phenomenon.
4) Excellent performance in durability and resistance to high temperature.
5) Better chip clearance makes works more efficient.
6) Specializing in punching holes on stainless steel.
| Product name: | High quality K20 carbide stainless steel hole saw | ||||
| Brand: | ZHONGZUAN | ||||
| Material: | K20 hard alloy/45# steel | ||||
| Colour: | Steel primary color | ||||
| Size: | 14-100mm, the size can be customized according to your requirements | ||||
| Hole depth: | 20mm | ||||
| Shank body: | Triangular shank | ||||
| Package: | Plastic box, can be customized | ||||
| Use: | Used for cutting stainless steel, iron, aluminum alloy, copper and other metal materials | ||||
Product Parameter
| Hole diameter (mm) | Hole diameter (inch) | Center drill diameter | Shank diameter | Depth of opening | Total length |
| 12 | 15/32" | 6mm | 10mm | 20mm | 80mm |
| 13 | 33/64" | 6mm | 10mm | 20mm | 80mm |
| 14 | 35/64" | 6mm | 10mm | 20mm | 80mm |
| 15 | 19/32" | 6mm | 10mm | 20mm | 80mm |
| 16 | 5/8" | 6mm | 10mm | 20mm | 80mm |
| 17 | 43/64" | 6mm | 10mm | 20mm | 80mm |
| 18 | 45/64" | 6mm | 10mm | 20mm | 80mm |
| 19 | 3/4" | 6mm | 10mm | 20mm | 80mm |
| 19.5 | 49/64" | 6mm | 10mm | 20mm | 80mm |
| 20 | 25/32" | 6mm | 10mm | 20mm | 80mm |
| 21 | 53/64" | 6mm | 10mm | 20mm | 80mm |
| 22 | 55/64" | 6mm | 10mm | 20mm | 80mm |
| 23 | 29/32" | 6mm | 10mm | 20mm | 80mm |
| 24 | 15/16" | 6mm | 10mm | 20mm | 80mm |
| 25 | 63/64" | 6mm | 10mm | 20mm | 80mm |
| 26 | 1 1/32" | 6mm | 10mm | 20mm | 80mm |
| 28 | 1 7/64" | 6mm | 10mm | 20mm | 80mm |
| 30 | 1 3/16" | 6mm | 10mm | 20mm | 80mm |
| 32 | 1 17/64" | 6mm | 10mm | 20mm | 80mm |
| 35 | 1 3/8" | 6mm | 10mm | 20mm | 80mm |
| 38 | 1 1/2" | 6mm | 10mm | 20mm | 80mm |
| 40 | 1 37/64" | 6mm | 10mm | 20mm | 80mm |
| 45 | 1 49/64" | 6mm | 10mm | 20mm | 80mm |
| 50 | 1 31/32" | 6mm | 10mm | 20mm | 80mm |
| 53 | 2 3/32" | 6mm | 10mm | 20mm | 80mm |
| 55 | 2 11/64" | 6mm | 10mm | 20mm | 80mm |
| 60 | 2 23/64" | 6mm | 10mm | 20mm | 80mm |
| 65 | 2 9/16" | 6mm | 10mm | 20mm | 80mm |
| 70 | 2 3/4" | 6mm | 10mm | 20mm | 80mm |
| 75 | 2 61/64" | 6mm | 10mm | 20mm | 80mm |
| 80 | 3 5/32" | 6mm | 10mm | 20mm | 80mm |
| 85 | 3 11/32" | 6mm | 10mm | 20mm | 80mm |
| 90 | 3 35/64" | 6mm | 10mm | 20mm | 80mm |
| 95 | 3 47/64" | 6mm | 10mm | 20mm | 80mm |
| 100 | 3 15/16" | 6mm | 10mm | 20mm | 80mm |
| 105 | 4 9/64" | 6mm | 10mm | 20mm | 80mm |
| 110 | 4 21/64" | 6mm | 10mm | 20mm | 80mm |
| 115 | 4 17/32" | 6mm | 10mm | 20mm | 80mm |
| 120 | 4 23/32" | 6mm | 10mm | 20mm | 80mm |
| 125 | 4 59/64" | 6mm | 10mm | 20mm | 80mm |
| 130 | 5 1/8" | 6mm | 10mm | 20mm | 80mm |
| 135 | 5 5/16" | 6mm | 10mm | 20mm | 80mm |
| 140 | 5 33/64" | 6mm | 10mm | 20mm | 80mm |
| 145 | 5 45/64" | 6mm | 10mm | 20mm | 80mm |
| 150 | 5 29/32" | 6mm | 10mm | 20mm | 80mm |
| 155 | 6 7/64" | 6mm | 10mm | 20mm | 80mm |
| 160 | 6 19/64" | 6mm | 10mm | 20mm | 80mm |
| 165 | 6 1/2" | 6mm | 10mm | 20mm | 80mm |
| 170 | 6 11/16" | 6mm | 10mm | 20mm | 80mm |
| 175 | 6 57/64" | 6mm | 10mm | 20mm | 80mm |
| 180 | 7 3/32" | 6mm | 10mm | 20mm | 80mm |
| 185 | 7 9/32" | 6mm | 10mm | 20mm | 80mm |
| 190 | 7 31/64" | 6mm | 10mm | 20mm | 80mm |
| 195 | 7 43/64" | 6mm | 10mm | 20mm | 80mm |
| 200 | 7 7/8" | 6mm | 10mm | 20mm | 80mm |
Product Parts
Application
