| Place of Origin: | Chongqing,China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | CE;ISO9001;2015; |
| Model Number: | T-005 |
| Minimum Order Quantity: | 500 |
| Price: | USD0.67/piece |
| Delivery Time: | 7-10 work day |
| Payment Terms: | T/T |
| Supply Ability: | 10,000pcs/day |
| Product: | TCT Hole Saw | Material: | Tungsten Carbide + Steel Shank |
|---|---|---|---|
| Size: | 12-200mm | Packing: | PVC Box |
| Shank: | Triangle Shank | Processing: | Higt Frequency Welded |
| Application: | Metal Drilling, Metal Steel Aluminum Drilling | Type: | Stainless Steel Hole Saw |
| High Light: | K20 6 inch carbide hole saw,CE 6 inch carbide hole saw,TCT tungsten carbide tipped hole cutter |
||

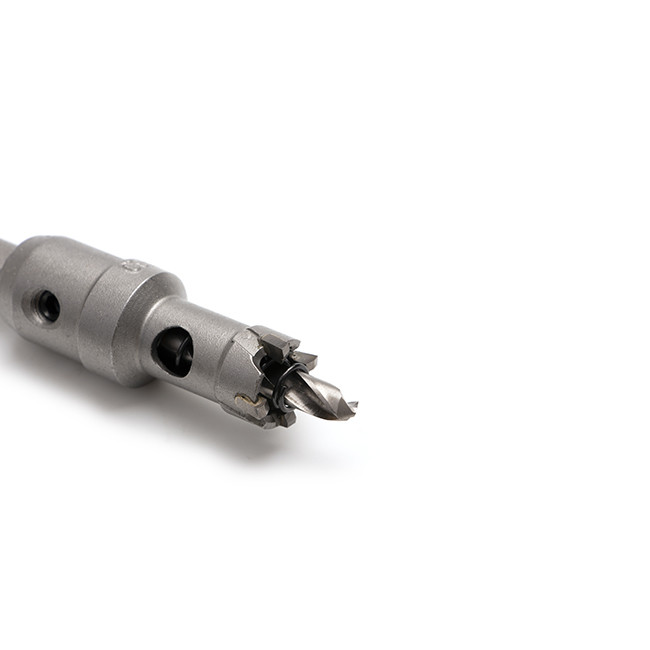

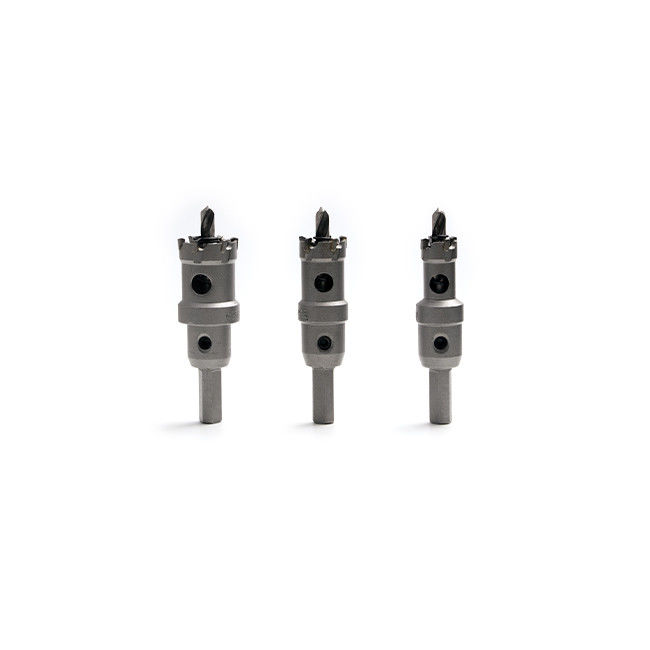

K20TCT Tungsten Carbide Tipped Hole Cutter Carbide Hole Saw For Copper
1. Tungsten carbide-tipped cutting edges last longer and can be run at higher rates and speeds.
2. Equipped with high quality K20 alloy to enhance the drilling speed and creates a sharp, high precision and smooth cut with no broken edges.
3. Designed specifically for 10mm sheet metal cutting, and 3mm stainless steel plate.
4. Chips hole makes it cut more fast and smoothly.
| Product name: | High quality K20 carbide stainless steel hole saw | ||||
| Brand: | ZHONGZUAN | ||||
| Material: | K20 hard alloy/45# steel | ||||
| Colour: | Steel primary color | ||||
| Size: | 14-100mm, the size can be customized according to your requirements | ||||
| Hole depth: | 20mm | ||||
| Shank body: | Triangular shank | ||||
| Package: | Plastic box, can be customized | ||||
| Use: | Used for cutting stainless steel, iron, aluminum alloy, copper and other metal materials | ||||
Product Parameter
| Hole diameter (mm) | Hole diameter (inch) | Center drill diameter | Shank diameter | Depth of opening | Total length |
| 12 | 15/32" | 6mm | 10mm | 20mm | 80mm |
| 13 | 33/64" | 6mm | 10mm | 20mm | 80mm |
| 14 | 35/64" | 6mm | 10mm | 20mm | 80mm |
| 15 | 19/32" | 6mm | 10mm | 20mm | 80mm |
| 16 | 5/8" | 6mm | 10mm | 20mm | 80mm |
| 17 | 43/64" | 6mm | 10mm | 20mm | 80mm |
| 18 | 45/64" | 6mm | 10mm | 20mm | 80mm |
| 19 | 3/4" | 6mm | 10mm | 20mm | 80mm |
| 19.5 | 49/64" | 6mm | 10mm | 20mm | 80mm |
| 20 | 25/32" | 6mm | 10mm | 20mm | 80mm |
| 21 | 53/64" | 6mm | 10mm | 20mm | 80mm |
| 22 | 55/64" | 6mm | 10mm | 20mm | 80mm |
| 23 | 29/32" | 6mm | 10mm | 20mm | 80mm |
| 24 | 15/16" | 6mm | 10mm | 20mm | 80mm |
| 25 | 63/64" | 6mm | 10mm | 20mm | 80mm |
| 26 | 1 1/32" | 6mm | 10mm | 20mm | 80mm |
| 28 | 1 7/64" | 6mm | 10mm | 20mm | 80mm |
| 30 | 1 3/16" | 6mm | 10mm | 20mm | 80mm |
| 32 | 1 17/64" | 6mm | 10mm | 20mm | 80mm |
| 35 | 1 3/8" | 6mm | 10mm | 20mm | 80mm |
| 38 | 1 1/2" | 6mm | 10mm | 20mm | 80mm |
| 40 | 1 37/64" | 6mm | 10mm | 20mm | 80mm |
| 45 | 1 49/64" | 6mm | 10mm | 20mm | 80mm |
| 50 | 1 31/32" | 6mm | 10mm | 20mm | 80mm |
| 53 | 2 3/32" | 6mm | 10mm | 20mm | 80mm |
| 55 | 2 11/64" | 6mm | 10mm | 20mm | 80mm |
| 60 | 2 23/64" | 6mm | 10mm | 20mm | 80mm |
| 65 | 2 9/16" | 6mm | 10mm | 20mm | 80mm |
| 70 | 2 3/4" | 6mm | 10mm | 20mm | 80mm |
| 75 | 2 61/64" | 6mm | 10mm | 20mm | 80mm |
| 80 | 3 5/32" | 6mm | 10mm | 20mm | 80mm |
| 85 | 3 11/32" | 6mm | 10mm | 20mm | 80mm |
| 90 | 3 35/64" | 6mm | 10mm | 20mm | 80mm |
| 95 | 3 47/64" | 6mm | 10mm | 20mm | 80mm |
| 100 | 3 15/16" | 6mm | 10mm | 20mm | 80mm |
| 105 | 4 9/64" | 6mm | 10mm | 20mm | 80mm |
| 110 | 4 21/64" | 6mm | 10mm | 20mm | 80mm |
| 115 | 4 17/32" | 6mm | 10mm | 20mm | 80mm |
| 120 | 4 23/32" | 6mm | 10mm | 20mm | 80mm |
| 125 | 4 59/64" | 6mm | 10mm | 20mm | 80mm |
| 130 | 5 1/8" | 6mm | 10mm | 20mm | 80mm |
| 135 | 5 5/16" | 6mm | 10mm | 20mm | 80mm |
| 140 | 5 33/64" | 6mm | 10mm | 20mm | 80mm |
| 145 | 5 45/64" | 6mm | 10mm | 20mm | 80mm |
| 150 | 5 29/32" | 6mm | 10mm | 20mm | 80mm |
| 155 | 6 7/64" | 6mm | 10mm | 20mm | 80mm |
| 160 | 6 19/64" | 6mm | 10mm | 20mm | 80mm |
| 165 | 6 1/2" | 6mm | 10mm | 20mm | 80mm |
| 170 | 6 11/16" | 6mm | 10mm | 20mm | 80mm |
| 175 | 6 57/64" | 6mm | 10mm | 20mm | 80mm |
| 180 | 7 3/32" | 6mm | 10mm | 20mm | 80mm |
| 185 | 7 9/32" | 6mm | 10mm | 20mm | 80mm |
| 190 | 7 31/64" | 6mm | 10mm | 20mm | 80mm |
| 195 | 7 43/64" | 6mm | 10mm | 20mm | 80mm |
| 200 | 7 7/8" | 6mm | 10mm | 20mm | 80mm |

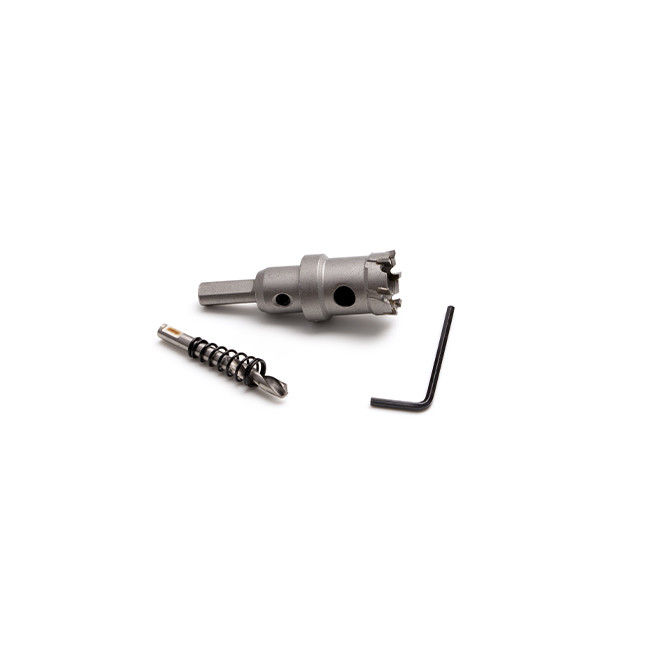

Product acessories
Feature
1. The main body is made of 45# steel. The service life is effectively extended.
2. The alloy adopts a multi-tooth combination design, which is composed of three sets of cutting edges,inner,middle and outer,so that each tooth can be easily stressed during the cutting process, making the cutting smoother and faster.
3. The use of a new upgraded large chip flute, supplemented by a dedicated chip hole, smooth chip evacuation, and effectively prevent chipping due to chip blockage.
4. Forged with high-quality materials, high strength, precise positioning and good toughness.
5. Polygonal drill shank design effectively prevents slipping during drilling.
Application
Package&Delivery
We have cooperated with DHLUPS,TNT Fedex,China Post and other sea shipping agent,thus we can quote the most economical shipping charge for you.
