| Place of Origin: | Chongqing, China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | ISO9001: 2015 |
| Model Number: | A-007 |
| Minimum Order Quantity: | 100piece |
| Price: | $0.069-3.63/piece |
| Packaging Details: | PVC box |
| Delivery Time: | 7-10 work day |
| Payment Terms: | T/T |
| Supply Ability: | 10,000pcs/day |
| Product Name: | 0.8-16mm Sharp Gold Tin Coated High Speed Steel Twist Drills Bit | Standard: | DIN338 |
|---|---|---|---|
| Application: | For Metal Drilling | Shank Type: | Triangle Handle |
| Size: | 0.8-16mm | Material: | Hss |
| Package: | PVC Box | OEM Brand: | OEM Brand |
| High Light: | Sharp Gold Metal Drilling Bit,Metal Drilling Bit Tin Coated,Steel Twist Drills Bit |
||

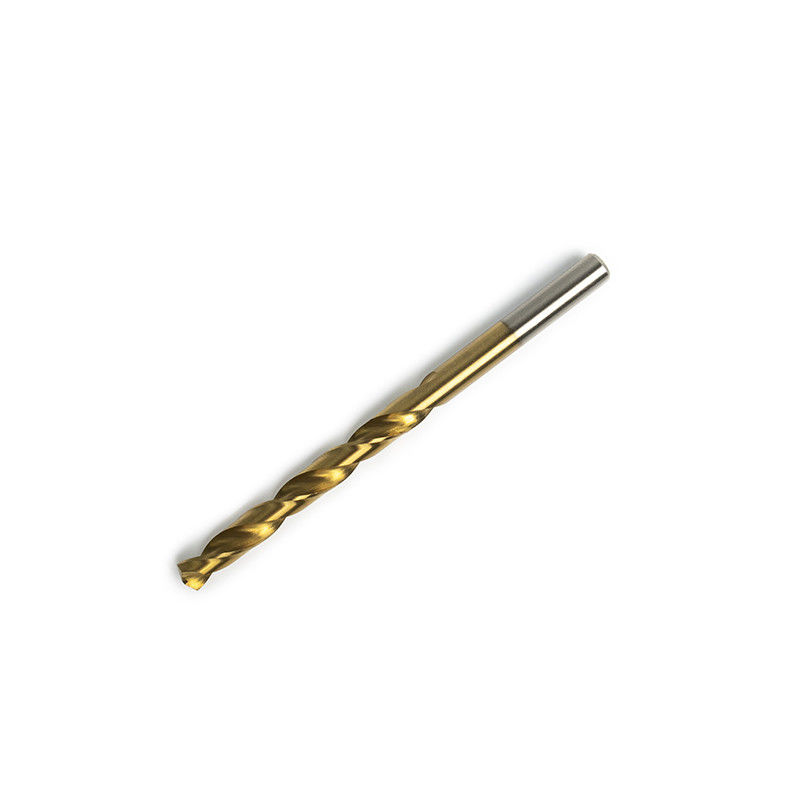

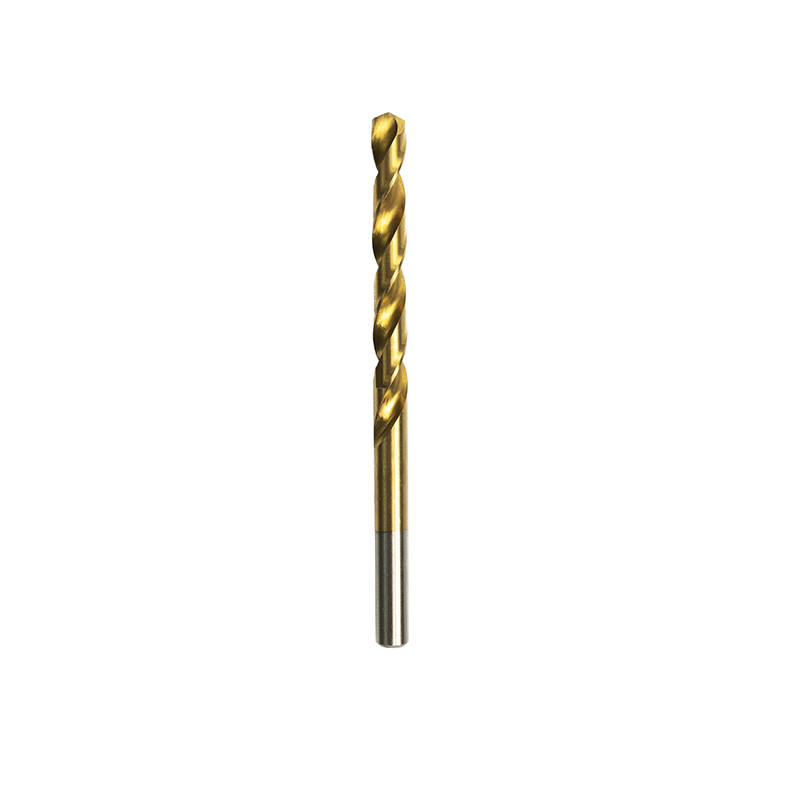

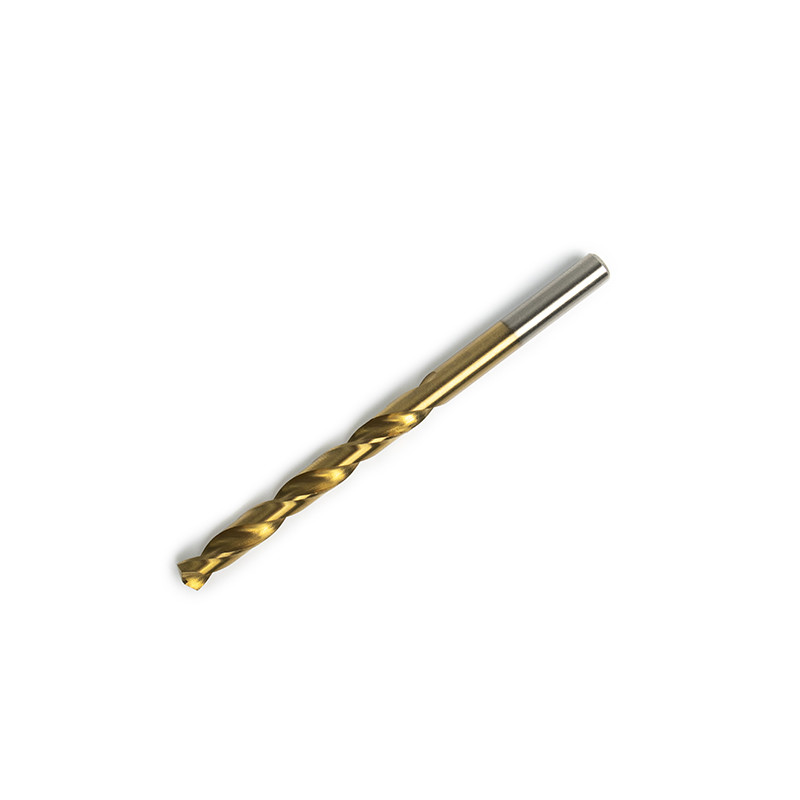

0.8-16mm Sharp Gold Tin Coated High Speed Steel Twist Drills Bit
DIN338 sharp Titanium coated hss twist drill is widely used for stainless steel, iron, aluminum alloy, wood, plastic hole drilling. High speed steel raw materials make it cut sharply and has a long service life. The standard reverse black oxide hss drill bits have fully ground body construction. High flow spiral design for the fastest removal speed and for thick material.
Specification
0.8-16mm Sharp Gold Tin Coated High Speed Steel Twist Drills Bit
| Type | Twist Drill Bit/ HSS Drill Bit |
|
Application |
For metal drilling |
| size | 0.8-16mm |
|
Standard |
DIN338 |
|
Shank Type |
Triangle handle |
| Color | Gold |
| Brand | ZhongZuan |
| Place Of Origin | Chongqing, China |
| OEM Brand | OEM Brand |
Product parameter
| A(mm) | B(mm) | C(mm) | A(mm) | B(mm) | C(mm) |
| 0.8 | 10 | 30 | 7.5 | 69 | 109 |
| 1.0 | 12 | 34 | 8.0 | 75 | 117 |
| 1.5 |
18 |
40 | 8.5 | 75 | 117 |
| 2.0 | 24 | 49 | 9.0 | 81 | 125 |
| 2.5 | 30 | 57 | 9.5 | 81 | 125 |
| 2.8 | 33 | 61 | 10.0 | 87 | 133 |
| 3.0 | 33 | 61 | 10.5 | 87 | 133 |
| 3.2 | 36 | 65 | 11.0 | 94 | 142 |
| 3.5 | 39 | 70 | 11.5 | 94 | 142 |
| 4.0 | 43 | 75 | 12.0 | 101 | 151 |
| 4.2 | 43 | 75 | 12.5 | 101 | 151 |
| 4.5 | 47 | 80 | 13.0 | 101 | 151 |
| 5.0 | 52 | 86 | 13.5 | 108 | 160 |
| 5.2 | 52 | 86 | 14.0 | 108 | 160 |
| 5.5 | 57 | 93 | 14.5 | 114 | 169 |
| 6.0 | 57 | 93 | 15.0 | 114 | 169 |
| 6.5 | 63 | 101 | 15.5 | 120 | 178 |
| 6.8 | 69 | 109 | 16.0 | 120 | 178 |
| 7.0 | 69 | 109 |
Features
1. High speed steel tin coated twist bits have fully ground body construction and high flow spiral design for the fastest removal speed and for thick material.
2. The straight shank of left hand metal twist drill bit is for standard chuck, less "walking" or "wandering." The end of the shank is chamfered to allow an easy and firm grip.
3. DIN338 standard metric twist drill is made of high-quality high-speed steel material, with good hardness, titanium-plated coating is anti-oxidative, and effectively prolongs the service life.
