DIN 1897 Short Shank HSS Twist Drill Bit Metal Drilling Bit

Basic Information
Place of Origin: Chongqing,China
Brand Name: ZhongZuan
Certification: CE;ISO9001;2015;
Model Number: H-006
Minimum Order Quantity: 1000
Price: $0.04-26.33/piece
Delivery Time: 7-10 work day
Payment Terms: T/T
Supply Ability: 10,000pcs/day
Product: DIN 1897Hss Twist Drill Bit Material: M35,6542,4241,4341
Shank: Straight/flat Size: 1-20mm
Angle: 118' 135' Type: Full Grinding/full Rolling/milling
Application: Steel,metal,wood,pvc Packing: Plastic Tube,PVC Box,Customized
High Light:

DIN 1897 Short Length Drill Bits


20mm Short Length Drill Bits


M2 hss drill bit for stainless steel

DIN 1897 Short Shank HSS Twist Drill Bit Metal Drilling Bit​



1. Qualified HSS(M35/M2/4341/4241) raw materials ensure sharp and fast execution in any material for clean results
2. Premium Heat treated black oxide is durable and withstand heavy duty operation for a long tool life
3. Black Oxide Surface Treatment holds up lubricant better for smoother drilling





1. Grinding technology: Use powerful grinding wheel to make the blade groove more sharp and smooth,making the drill bit more durable.
2. Spiral groove:S - type spiral groove helps to remove chips easier and work more efficient.
3. 118° and 135° split points:118 drill bits are more suitable for soft materials cutting,like mild steel or cast iron.135 drill bits are suitable for hard steel,especially for hole diameter 4times as the drill bits’ diameter.The thick chips produced when cut hard materials reduce the working hardening of the cavity.





Product name: Din340 HSS twist drill bit
Material: 4341,6542(M2),M35,4241
Craftwork: Full grinding, rolling, milling
Angle: 118°,135°
Size: 0.8-20mm
Specification: Metric,inch,digital size.
Coating: no coating,black oxidation,cupric oxide,Tin nitride
Package: 5 or 10 pcs in a PVC box. Can be custom
Application: Stainless steel, iron, aluminum, copper, PVC board, wood drilling



Products we can provide you








Choose the most suitable HSS twist drill bits according to the processing requirement.

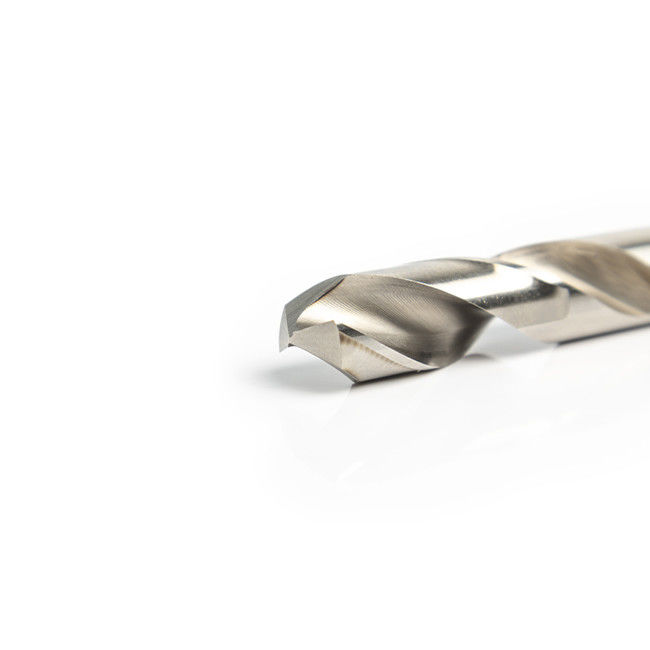

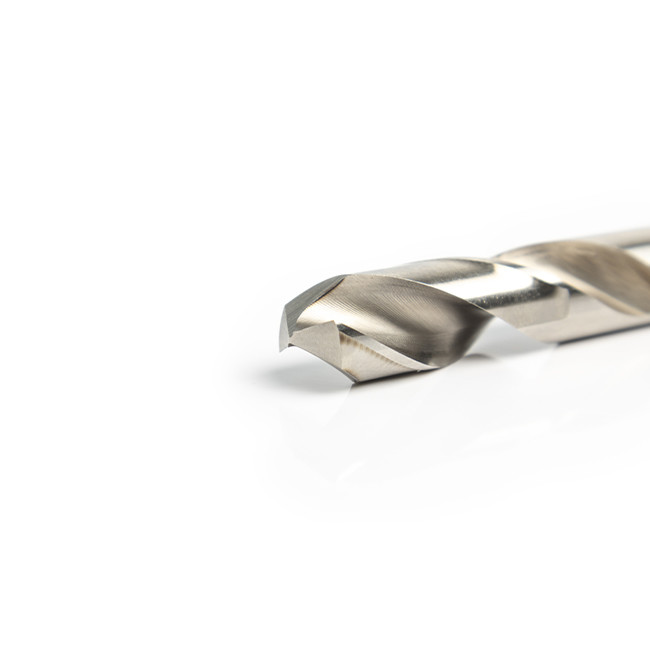

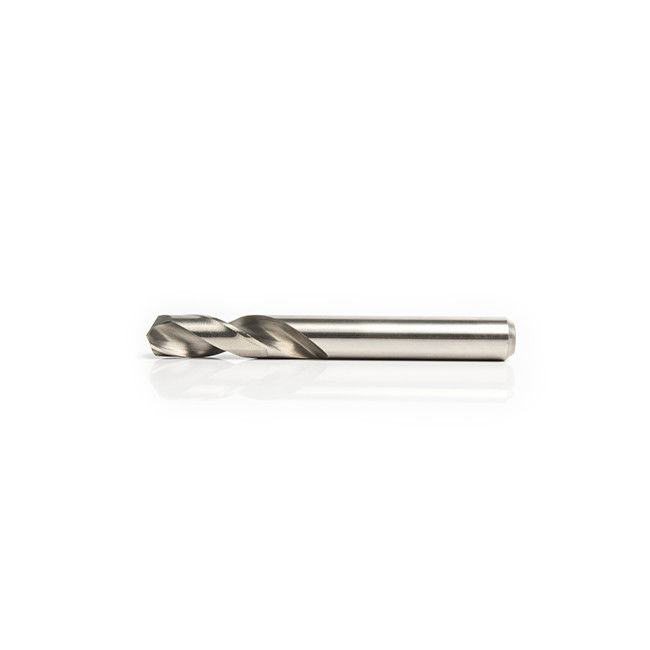

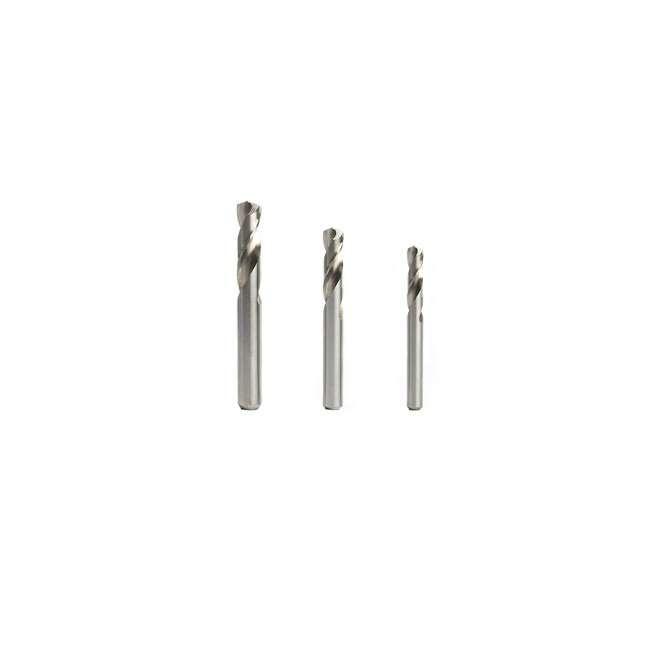

Picture show


DIN 1897 Short Shank HSS Twist Drill Bit Metal Drilling Bit 2
