| Place of Origin: | Chongqing, China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | ISO9001: 2015 |
| Minimum Order Quantity: | 100 pcs |
| Price: | $0.16-9.91/pcs |
| Packaging Details: | Plastic box |
| Delivery Time: | 7-10 workday |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10,000 pcs/day |
| Product Name: | 0 15/64 - 7 7/8 Inch Electroplated Diamond Core Bit，Hole Saw For Tile Granite Glass Drilling | Material: | Diamond+ Steel |
|---|---|---|---|
| Processing: | Electroplated | Application: | For Tile Granite Glass Drilling |
| Size: | 6-200mm | Packing: | PVC Box |
| Certification: | ISO9001: 2015 | OEM Brand: | OEM Brand |
| High Light: | Electroplated 7 Inch Diamond Core Bit,Diamond Hole Saw drill Core Bit,Tile Granite Glass Diamond Core Bit |
||

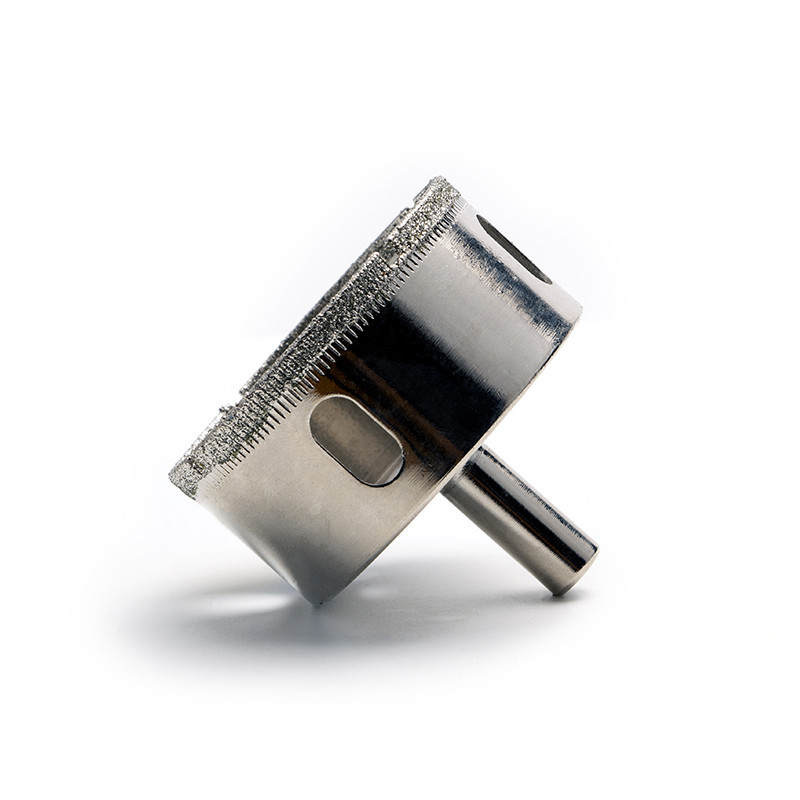

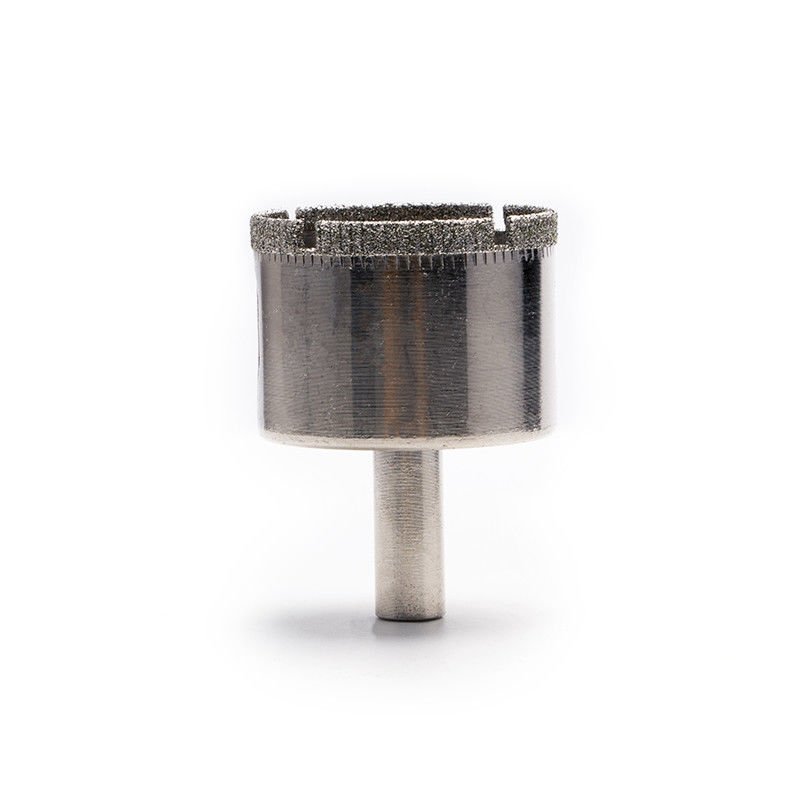

0 15/64 - 7 7/8 Inch Electroplated Diamond CoreBit,Hole Saw For Tile Granite Glass Drilling
Electroplated diamond core bits are made of diamond and steel,electroplating of diamond on the working part by electroplating process.
Diamond hole saw are suitable for drilling glass, ceramic tiles, ceramics, marble, granite, quartz stone, microcrystalline stone and other materials.
specification
| Material | Diamond+Steel |
| Size | 6-200mm/0 15/64 - 7 7/8 Inch |
| Usage | For Tile Granite Glass Drilling |
| Surface Treatment | Nickel plated |
| Shank Type | Round handle |
| MOQ | 100 pcs |
| Certification | ISO9001: 2015 |
| Packing | PVC Box |
| OEM Brand | OEM Brand |
| Brand | ZhongZuan |
Features:
1. Easy to use, Can be used with a standard electric drill (not included)
2. High-quality,nickel-plated with a diamond dust coating.
3. Good performance, excellent for making the clean and accurate holes.
4. Wide range of uses, can remove a complete circle from glass, ceramics, porcelain, porcelain flakes,
limestone, slate, marble, granite, pumice, and fiberglass, or other materials.
Product Parameter
| Model | Diameter | Shank Diameter | Hole Depth | Total Length |
| 6mm | 6mm | 5mm | / | 50mm |
| 8mm | 8mm | 6.5mm | 30mm | 50mm |
| 10mm | 10mm | 6.5mm | 30mm | 50mm |
| 12mm | 12mm | 6.5mm | 30mm | 50mm |
| 14mm | 14mm | 6.5mm | 30mm | 50mm |
| 16mm | 16mm | 7.5mm | 30mm | 50mm |
| 18mm | 18mm | 8mm | 30mm | 55mm |
| 20mm | 20mm | 8mm | 30mm | 55mm |
| 22mm | 22mm | 8mm | 30mm | 55mm |
| 25mm | 25mm | 8mm | 30mm | 55mm |
| 28mm | 28mm | 8mm | 30mm | 55mm |
| 30mm | 30mm | 8mm | 30mm | 55mm |
| 32mm | 32mm | 8mm | 30mm | 55mm |
| 35mm | 35mm | 8mm | 30mm | 55mm |
| 40mm | 40mm | 10mm | 30mm | 55mm |
| 45mm | 45mm | 10mm | 30mm | 55mm |
| 50mm | 50mm | 10mm | 30mm | 55mm |
| 55mm | 55mm | 10mm | 30mm | 55mm |
Application
Diamond hole cutters are suitable for drilling glass, ceramic tiles, ceramics, marble, granite, quartz stone, microcrystalline stone and other materials.
Applicable Machine
Company Profile
ZhongZuan is a professional power tool accessories manufacturer & supplier in China. Since 1995, with 27 years of industry experience. We manufacture and sell Diamond Core Bits, Hss Drill Bits, Wood Drill Bits, Hammer Drill BIts & Chisel, Router Bits, Diamond Saw Blades, Hss Saw Blades, TCT Saw Blades, Polishing Pads, Abrasive Tools and many more to choose from.
We have accumulated rich experience in product design, manufacturing and application, and can design supporting products for the complex processing enviroment of products, help customers solve various application problems of products, and provide professional solutions.
