| Place of Origin: | Chongqing,China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | CE;ISO9001;2015; |
| Model Number: | G-16 |
| Minimum Order Quantity: | 300 |
| Price: | $2.12-4.66/piece |
| Delivery Time: | 7-10 work day |
| Payment Terms: | T/T |
| Supply Ability: | 10,000pcs/day |
| Product Name: | Wax Inside Diamond Hole Saw | Materail: | Diamond Grain,Premium Steel |
|---|---|---|---|
| Origin: | Chongqing | Application: | Marble Glass Stones Ceramic |
| Technology: | Brazed Vacuum Technology | Color: | Orange,black |
| Certificate: | ISO9001;2015/CE | Package: | PVC Box/metal Case |
| High Light: | 10mm Brazed Diamond Hole Saw,Wax Inside Brazed Diamond Hole Saw,M14 threaded shank drill bits |
||

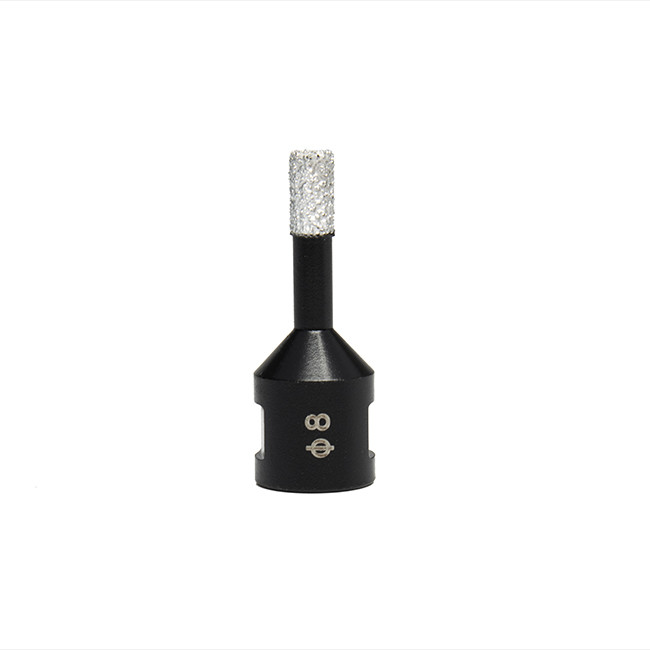

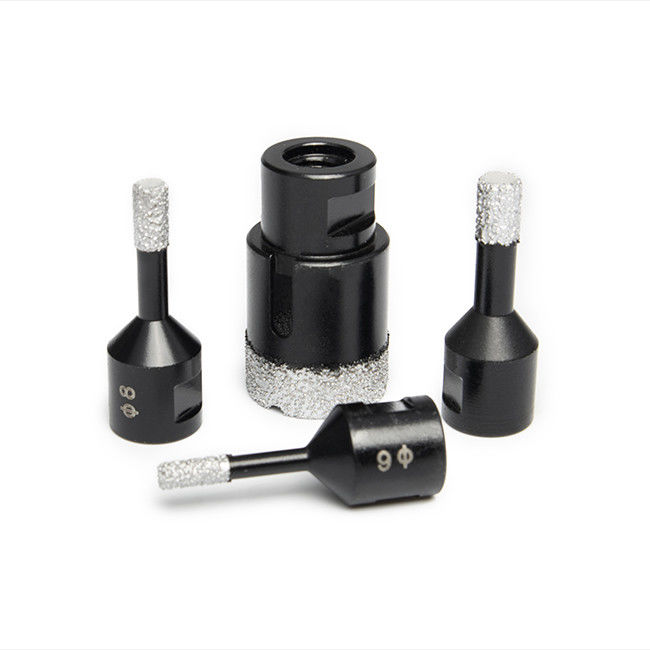

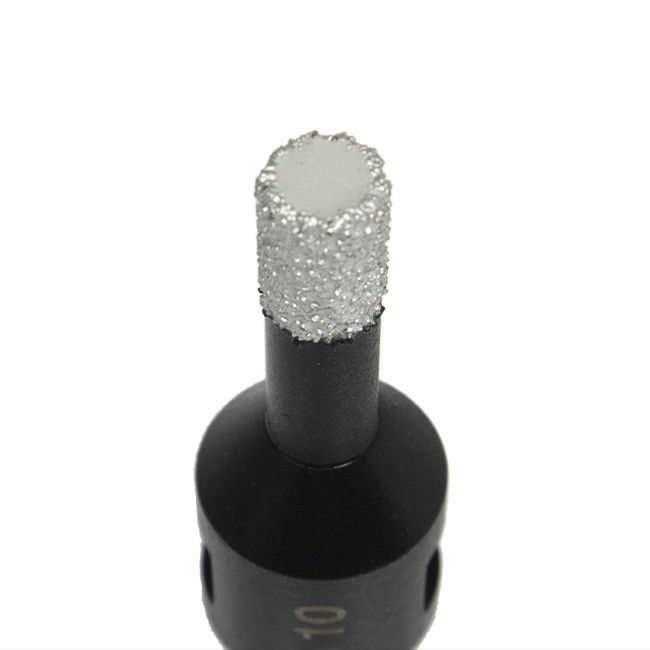

M14 Threaded Shank Brazed Porcelain Tile Hole Cutter Diamond Hole Saws
1. Multi-purpose drilling for granite &marble,masonry,concrete,tile/ceramic,stone.
2. Wax inside for cooling,our Diamond Tipped Drill Bits have wax cores built-in which automatically absorb and dissipate heat.
3. Dry drilling and Use water for longer time.
| Product name: | M14 vacuum brazed diamond hole saw | |||
| Use: | Drilling of tiles, marble, granite | |||
| Material: | Diamond+45#steel | |||
| Shank: | M14 thread | |||
| Colour: | Black, orange, blue, gold, customized colors | |||
| Diamond height: | 10mm,15mm | |||
Built-in cooling wax allows it to dry cut
Cooling wax comes with 6,8,10,12,14mm hole saw and will cool and lubricate the bit when dry cut the materials.
Product Parameter
| Diameter(mm) | Diameter(inch) | Diamond height | Depth of opening | Total length |
| 6 | 15/64 | 10/15mm | 35mm | 62mm |
| 8 | 5/16 | 10/15mm | 35mm | 62mm |
| 10 | 25/64 | 10/15mm | 35mm | 62mm |
| 12 | 15/32 | 10/15mm | 35mm | 62mm |
| 14 | 35/64 | 10/15mm | 35mm | 62mm |
| 16 | 5/8 | 10/15mm | 35mm | 62mm |
| 18 | 45/64 | 10/15mm | 35mm | 62mm |
| 20 | 25/32 | 10/15mm | 40mm | 62mm |
| 22 | 55/64 | 10/15mm | 40mm | 62mm |
| 25 | 63/64 | 10/15mm | 40mm | 62mm |
| 28 | 1 3/16 | 10/15mm | 40mm | 62mm |
| 30 | 1 17/64 | 10/15mm | 40mm | 62mm |
| 32 | 1 3/8 | 10/15mm | 40mm | 62mm |
| 35 | 1 17/64 | 10/15mm | 40mm | 62mm |
| 38 | 1 1/2 | 10/15mm | 40mm | 62mm |
| 40 | 1 37/64 | 10/15mm | 40mm | 62mm |
| 45 | 1 49/64 | 10/15mm | 40mm | 62mm |
| 50 | 1 31/32 | 10/15mm | 40mm | 62mm |
| 55 | 2 11/64 | 10/15mm | 40mm | 62mm |
| 60 | 2 23/64 | 10/15mm | 40mm | 62mm |
| 65 | 2 9/16 | 10/15mm | 40mm | 62mm |
| 70 | 2 3/4 | 10/15mm | 40mm | 62mm |
| 75 | 2 61/64 | 10/15mm | 40mm | 62mm |
| 80 | 3 5/32 | 10/15mm | 40mm | 62mm |
| 85 | 3 11/32 | 10/15mm | 40mm | 62mm |
| 100 | 3 15/16 | 10/15mm | 40mm | 62mm |
Complete specifications, if you need custom sizes, please contact us for more information!
Product Details
1. Sharp edge: The opening hole will be round and cut fast.
2. The cut-out design is larger which reduce the resistance when it works.
3. High-quality thread design makes it easily to install and remove, meanwhile it will allow it to be held more tightly when work.
4. Select high-quality diamond raw materials and drill fast and stably.
5. Vacuum brazed craftwork allows it to work stably in high-heat condition and no need to add water cooling.
Application
Real Product
