M14 Thread Shank Porcelain Tile Hole Cutter Diamond Hole Saws

Basic Information
Place of Origin: Chongqing,China
Brand Name: ZhongZuan
Certification: CE;ISO9001;2015;
Model Number: G-16
Minimum Order Quantity: 300
Price: $1.9-6.35/piece
Delivery Time: 7-10 work day
Payment Terms: T/T
Supply Ability: 10,000pcs/day
Product Name: Glass Diamond Hole Saw Materail: Diamond Grain,45#steel
Origin: Chongqing,China Application: Marble Glass Stones
Technology: Vacuum Brazed Technology Color: Orange,black,blue
Certificate: ISO9001;2015,,CE Package: PVC Box,metal Case
High Light:

Orange Diamond Hole Saws


Dry Wet Cutting Diamond Hole Saws


3 inch diamond hole saw

3 Inch Diamond Hole Saw Dry Or Wet Cutting M14 Thread Shank For Glass Marble Cutting



Vacuum Brazed technology makes the industrial diamond grains permanently brazed to the edge of steel core,creating an unbreakable and extremely heat resistant segments.You could drill holes in Dry/Wet conditon,fast ansd sharply.



1. Sharp edge: The opening hole will be round and cut fast.
2. The cut-out design is larger which reduce the resistance when it works.
3. High-quality thread design makes it easily to install and remove, meanwhile it will allow it to be held more tightly when work.
4. Select high-quality diamond raw materials and drill fast and stably.
5. Vacuum brazed craftwork allows it to work stably in high-heat condition and no need to add water cooling.



 Product name: M14 vacuum brazed diamond hole saw
 Use: Drilling of tiles, marble, granite
 Material: Diamond+45#steel
 Shank: M14 thread
 Colour: Black, orange, blue, gold, customized colors
 Diamond height: 10mm,15mm



Product Parameter



Diameter(mm) Diameter(inch) Diamond height Depth of opening Total length
6 15/64 10/15mm 35mm 62mm
8 5/16 10/15mm 35mm 62mm
10 25/64 10/15mm 35mm 62mm
12 15/32 10/15mm 35mm 62mm
14 35/64 10/15mm 35mm 62mm
16 5/8 10/15mm 35mm 62mm
18 45/64 10/15mm 35mm 62mm
20 25/32 10/15mm 40mm 62mm
22 55/64 10/15mm 40mm 62mm
25 63/64 10/15mm 40mm 62mm
28 1 3/16 10/15mm 40mm 62mm
30 1 17/64 10/15mm 40mm 62mm
32 1 3/8 10/15mm 40mm 62mm
35 1 17/64 10/15mm 40mm 62mm
38 1 1/2 10/15mm 40mm 62mm
40 1 37/64 10/15mm 40mm 62mm
45 1 49/64 10/15mm 40mm 62mm
50 1 31/32 10/15mm 40mm 62mm
55 2 11/64 10/15mm 40mm 62mm
60 2 23/64 10/15mm 40mm 62mm
65 2 9/16 10/15mm 40mm 62mm
70 2 3/4 10/15mm 40mm 62mm
75 2 61/64 10/15mm 40mm 62mm
80 3 5/32 10/15mm 40mm 62mm
85 3 11/32 10/15mm 40mm 62mm
100 3 15/16 10/15mm 40mm 62mm

Complete specifications, if you need custom sizes, please contact us for more information!



Product Details











How to use the tool?


1. Fix it on angle grinder tightly and turn it on to let it rotate in the air and check whether fastened again.
2. Place the drill at 45 degree angle to start the drilling for seconds and bring the drill up into upright position.
3. Continue to drill and swaying slightly the machine along a circle

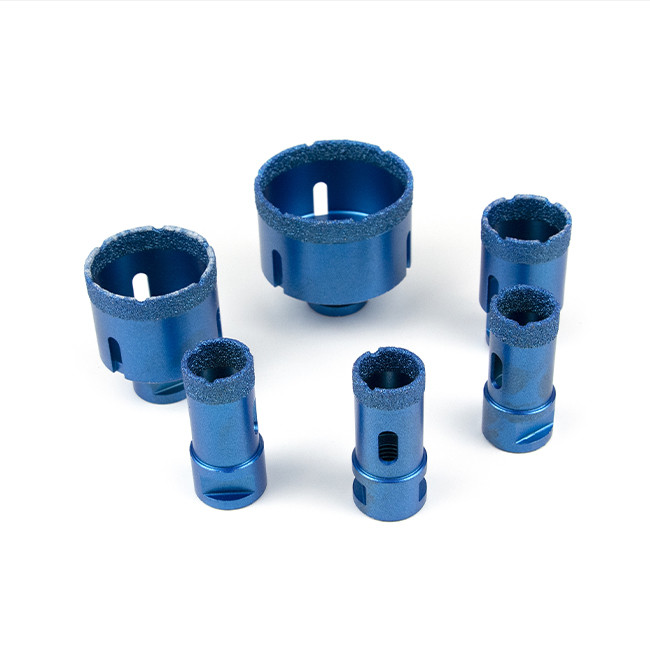

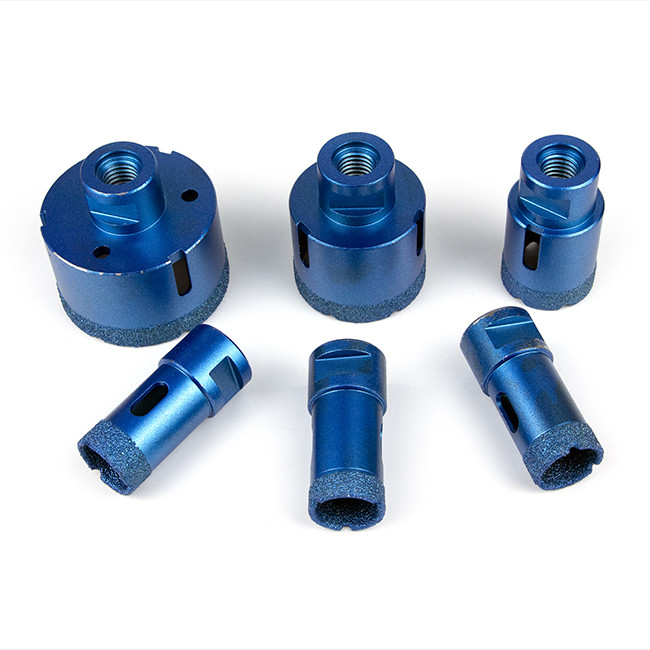

Real Product



M14 Thread Shank Porcelain Tile Hole Cutter Diamond Hole Saws 5




M14 Thread Shank Porcelain Tile Hole Cutter Diamond Hole Saws 6





M14 Thread Shank Porcelain Tile Hole Cutter Diamond Hole Saws 7
