Blue Brazed Diamond Hole Saws For Cutting Porcelain

Basic Information
Place of Origin: Chongqing,China
Brand Name: ZhongZuan
Certification: CE;ISO9001;2015;
Model Number: G-16
Minimum Order Quantity: 300
Price: $1.9-2.95/piece
Delivery Time: 7-10 work day
Payment Terms: T/T
Supply Ability: 10,000pcs/day
Product Name: Brazed Diamond Hole Saw Materail: Diamond+steel
Shank: M14 Thread Application: Granite,marble
Technology: Brazed Vacuum Color: Blue
Certificate: CE;ISO9001;2015 Package: PVC Tube
High Light:

Blue granite countertop hole saw


Brazed granite countertop hole saw


10mm round hole drill bit

Blue Brazed Diamond Hole Saws For Cutting Porcelain



1. Vacuum Brazed Diamond Hole Saws are dersigned for drilling Porcelain,Tile,Granite,Marble,Stone,Masonry,Brick and all similar materials
2. Ideal for drilling the faucet mounting holes in stone countertops, plumbing lines in showers and vanities
3. Dry or Wet Drilling - use wet will greatly prolong the segment life



Company profile


ZhongZuan(Chongqing)Precision Tool Manufacturing Co.,Ltd was founded in 1995 and has been specialized in researching and developing and producing the high-quality hole saw bits and drill bits of electric tools for 26 years. Factory is located in Chongqing, China and has an area of 11700 square meters with registered capital over RMB 5millions and over 120 employees. Our core products are diamond hole saw bits, HSS twist drill bits and alloy hole saw and drill bits, so far we have been cooperated with customers from over 10 countries in the world.



Product description


1. Sharp edge: The opening hole will be round and cut fast.
2. The cut-out design is larger which reduce the resistance when it works.
3. High-quality thread design makes it easily to install and remove, meanwhile it will allow it to be held more tightly when work.
4. Select high-quality diamond raw materials and drill fast and stably.
5. Vacuum brazed craftwork allows it to work stably in high-heat condition and no need to add water cooling.


 Product name: M14 vacuum brazed diamond hole saw
 Use: Drilling of tiles, marble, granite
 Material: Diamond+45#steel
 Shank: M14 thread
 Colour: Black, orange, blue, gold, customized colors
 Diamond height: 10mm,15mm



How to use the tool?


1. Fix it on angle grinder tightly and turn it on to let it rotate in the air and check whether fastened again.
2. Place the drill at 45 degree angle to start the drilling for seconds and bring the drill up into upright position.
3. Continue to drill and swaying slightly the machine along a circle



What we can provide?


1. Procucts can be made as you required and OEM/ODM
2. Free samples can be sent for evaluation
3. Professional before&after-sales teams 24h-online to solve your any technical problems.



Product Parameter



Diameter(mm) Diameter(inch) Diamond height Depth of opening Total length
6 15/64 10/15mm 35mm 62mm
8 5/16 10/15mm 35mm 62mm
10 25/64 10/15mm 35mm 62mm
12 15/32 10/15mm 35mm 62mm
14 35/64 10/15mm 35mm 62mm
16 5/8 10/15mm 35mm 62mm
18 45/64 10/15mm 35mm 62mm
20 25/32 10/15mm 40mm 62mm
22 55/64 10/15mm 40mm 62mm
25 63/64 10/15mm 40mm 62mm
28 1 3/16 10/15mm 40mm 62mm
30 1 17/64 10/15mm 40mm 62mm
32 1 3/8 10/15mm 40mm 62mm
35 1 17/64 10/15mm 40mm 62mm
38 1 1/2 10/15mm 40mm 62mm
40 1 37/64 10/15mm 40mm 62mm
45 1 49/64 10/15mm 40mm 62mm
50 1 31/32 10/15mm 40mm 62mm
55 2 11/64 10/15mm 40mm 62mm
60 2 23/64 10/15mm 40mm 62mm
65 2 9/16 10/15mm 40mm 62mm
70 2 3/4 10/15mm 40mm 62mm
75 2 61/64 10/15mm 40mm 62mm
80 3 5/32 10/15mm 40mm 62mm
85 3 11/32 10/15mm 40mm 62mm
100 3 15/16 10/15mm 40mm 62mm

Complete specifications, if you need custom sizes, please contact us for more information!



Product details

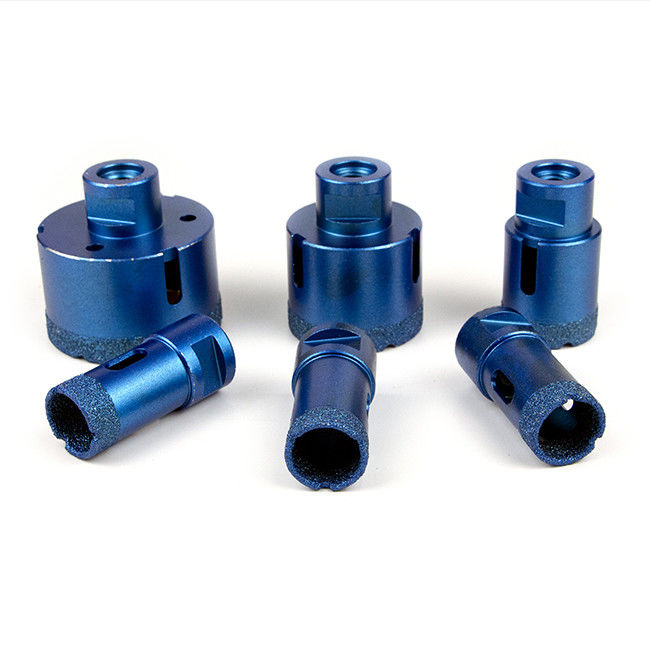

Picture show

Blue Brazed Diamond Hole Saws For Cutting Porcelain 5Blue Brazed Diamond Hole Saws For Cutting Porcelain 6


Blue Brazed Diamond Hole Saws For Cutting Porcelain 7


Blue Brazed Diamond Hole Saws For Cutting Porcelain 8
