| Place of Origin: | Chongqing,China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | CE;ISO9001;2015; |
| Model Number: | G-16 |
| Minimum Order Quantity: | 300 |
| Price: | $1.92-4.65/piece |
| Delivery Time: | 7-10 work day |
| Payment Terms: | T/T |
| Supply Ability: | 10,000pcs/day |
| Product Name: | Diamond Vacuum Hole Saw | Materail: | Diamond+steel |
|---|---|---|---|
| Shank: | M14 Thread | Application: | Granite,marble |
| Type: | Core Drill Bits | Size: | 6-100mm |
| Certificate: | CE;ISO9001;2015 | Package: | PVC Tube |
| High Light: | 60mm Diamond Hole Saws,Vacuum 60mm Diamond Hole Saws,15mm tile hole cutter |
||

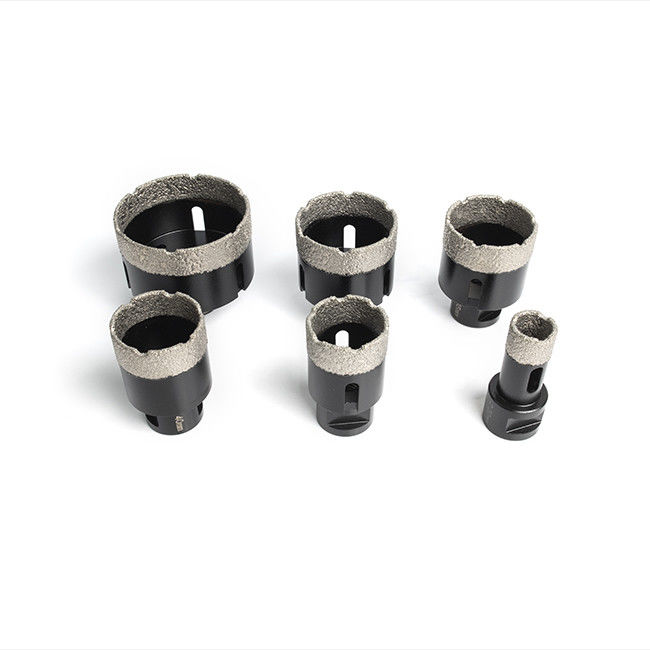

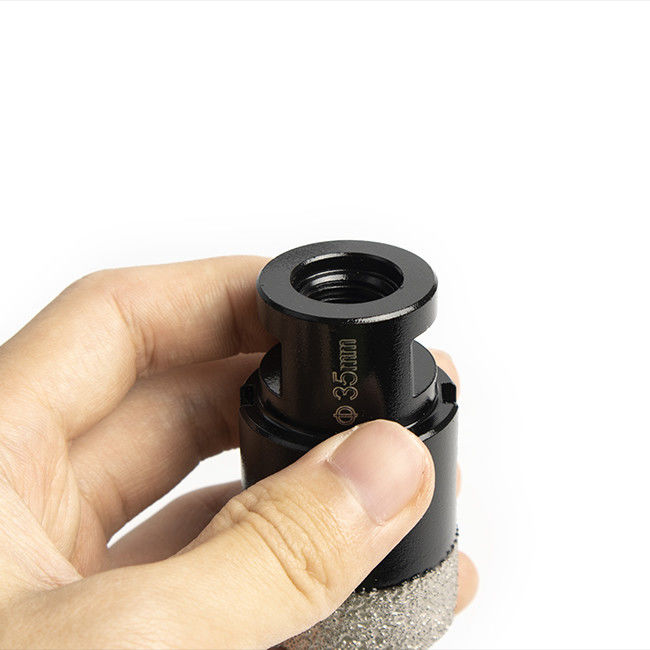

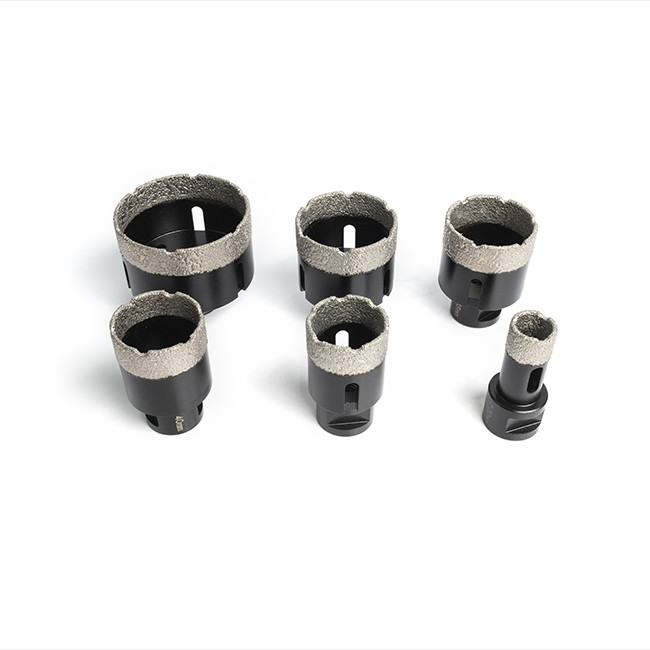

M14 Thread Shank Porcelain Tile Hole Cutter Diamond Hole Saws
Description
【High Quality】This Diamond Hole Bit is made of high quality diamond material with high hardness and durability, which is not easy to be damaged, is well-made and has high quality, and has a long service life.
【Good Performance】The Brazing Bit has a larger design of row cut, which reduces the resistance when opening holes, and has good drilling performance. It is suitable for marble, ceramic tiles, walls and other stones
【Feature】This diamond drill bit keeps of sharpness blade and supports the fast drilling speed while the hole is round and no gaps. It is a perfect substitute for the old model
【Wide Use】The Diamond Drill Cutter has small size, easy to carry and store, convenient to use and has good performance and a wide range of uses, can be suitable for stone openings and cores
Company profile
ZhongZuan(Chongqing)Precision Tool Manufacturing Co.,Ltd was founded in 1995 and has been specialized in researching and developing and producing the high-quality hole saw bits and drill bits of electric tools for 26 years. Factory is located in Chongqing, China and has an area of 11700 square meters with registered capital over RMB 5millions and over 120 employees. Our core products are diamond hole saw bits, HSS twist drill bits and alloy hole saw and drill bits, so far we have been cooperated with customers from over 10 countries in the world.
Our service
1. Procucts can be made as you required and OEM/ODM
2. Free samples can be sent for evaluation
3. Professional before&after-sales teams 24h-online to solve your any technical problems.
| Product name: | M14 vacuum brazed diamond hole saw | |||
| Use: | Drilling of tiles, marble, granite | |||
| Material: | Diamond+45#steel | |||
| Shank: | M14 thread | |||
| Colour: | Black, orange, blue, gold, customized colors | |||
| Diamond height: | 10mm,15mm | |||
Product Parameter
| Diameter(mm) | Diameter(inch) | Diamond height | Depth of opening | Total length |
| 6 | 15/64 | 10/15mm | 35mm | 62mm |
| 8 | 5/16 | 10/15mm | 35mm | 62mm |
| 10 | 25/64 | 10/15mm | 35mm | 62mm |
| 12 | 15/32 | 10/15mm | 35mm | 62mm |
| 14 | 35/64 | 10/15mm | 35mm | 62mm |
| 16 | 5/8 | 10/15mm | 35mm | 62mm |
| 18 | 45/64 | 10/15mm | 35mm | 62mm |
| 20 | 25/32 | 10/15mm | 40mm | 62mm |
| 22 | 55/64 | 10/15mm | 40mm | 62mm |
| 25 | 63/64 | 10/15mm | 40mm | 62mm |
| 28 | 1 3/16 | 10/15mm | 40mm | 62mm |
| 30 | 1 17/64 | 10/15mm | 40mm | 62mm |
| 32 | 1 3/8 | 10/15mm | 40mm | 62mm |
| 35 | 1 17/64 | 10/15mm | 40mm | 62mm |
| 38 | 1 1/2 | 10/15mm | 40mm | 62mm |
| 40 | 1 37/64 | 10/15mm | 40mm | 62mm |
| 45 | 1 49/64 | 10/15mm | 40mm | 62mm |
| 50 | 1 31/32 | 10/15mm | 40mm | 62mm |
| 55 | 2 11/64 | 10/15mm | 40mm | 62mm |
| 60 | 2 23/64 | 10/15mm | 40mm | 62mm |
| 65 | 2 9/16 | 10/15mm | 40mm | 62mm |
| 70 | 2 3/4 | 10/15mm | 40mm | 62mm |
| 75 | 2 61/64 | 10/15mm | 40mm | 62mm |
| 80 | 3 5/32 | 10/15mm | 40mm | 62mm |
| 85 | 3 11/32 | 10/15mm | 40mm | 62mm |
| 100 | 3 15/16 | 10/15mm | 40mm | 62mm |
Complete specifications, if you need custom sizes, please contact us for more information!
Product Details
Application
Real Product
