| Place of Origin: | Chongqing,China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | ISO9001;2015; |
| Model Number: | T-006 |
| Minimum Order Quantity: | 500 |
| Price: | $0.24-0.40/piece |
| Delivery Time: | 7-10 work day |
| Payment Terms: | T/T |
| Supply Ability: | 10,000pcs/day |
| Product: | Ultimate Triangle Drill Bit | Material: | Tungsten Carbide + Steel Shank |
|---|---|---|---|
| Type: | Twist Drill Bit | Color: | Blue Red Orange Or Customized |
| Shank: | Three-flat Shank | Process: | Sinter Welded |
| Packing: | PVC Box | Size: | 4-12mm |
| High Light: | Triangular Handle marble drill bit 6mm,marble drill bit 6mm,100mm steel metal drill bit |
||

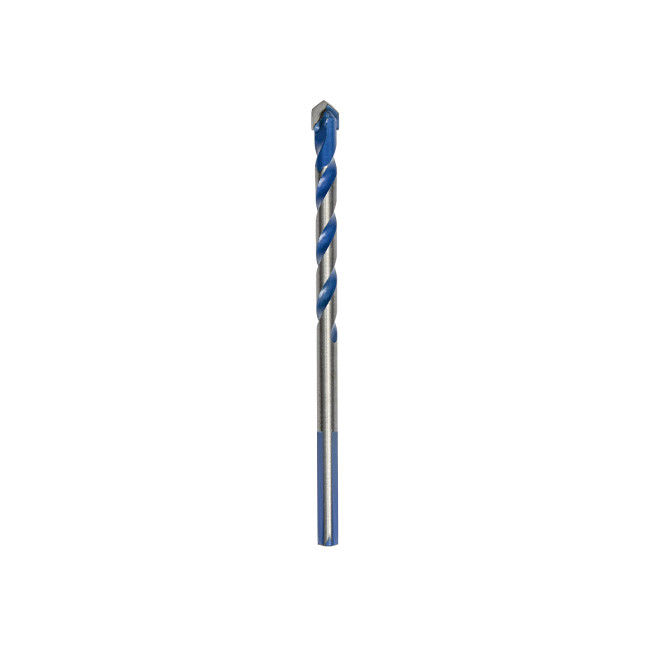

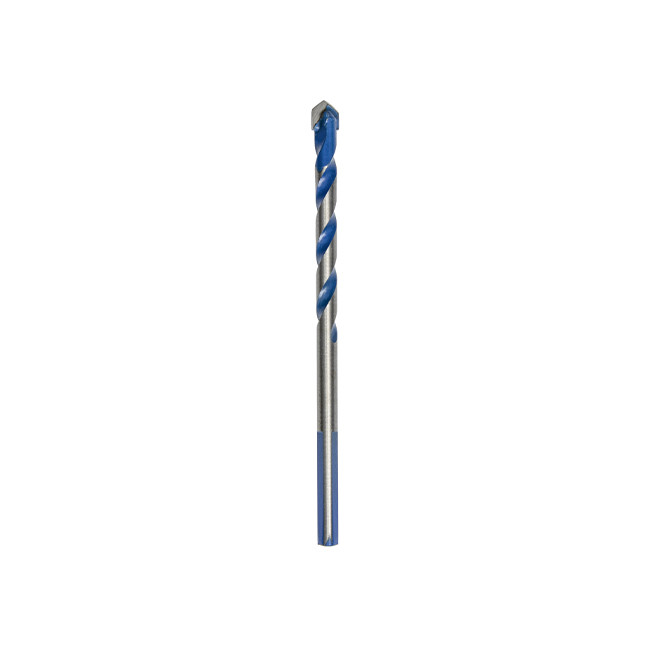

Tungsten Carbide Metal Drilling Bit For Drilling Glass
The drill tip adopts a triangular design, easier to locate,special sharpening technology,sharper,reduces cutting resistance,improves the drilling efficiency; the drill shaft has single helix structure,anti-rust treatment, conducive to the discharge of chips,drill faster; the handle adopts a non-slip triangular design,makes the operation more stable and avoids slippage
Specification
| item | value |
| Place of Origin | China |
| Brand Name | ZhongZuan |
| Type | Gun Drill Bit, Twist Drill Bit |
| Use | Drilling |
| Working Length (mm) | 12mm |
| Use | Marble tile punching |
| Material | Tungsten Carbide + Steel Shank |
| Application | Drilling Holes |
| Product name | Overlord triangle bit |
| Size | 4-12mm |
| Color | Orange red blue |
| Shank | Three-flat Shank |
| Packing | PVC Box |
| Process | Sinter Welded |
| Advantage | High-efficiency |
Product parameter
| Drill Size | Hold Diameter | Total Length | Shank Diameter | Drill length |
| 4mm | 4mm | 78mm | 3mm | 36mm |
| 5mm | 5mm | 78mm | 4mm | 36mm |
| 6mm | 6mm | 100mm | 5mm | 56mm |
| 8mm | 8mm | 110mm | 6mm | 66mm |
| 10mm | 10mm | 118mm | 7mm | 71mm |
| 12mm | 12mm | 120mm | 10mm | 76mm |
Features
1. High temperature quenching treatment,high hardness,strong wear resistance and long service life.
2. High-speed operation and chip removal effectively prevent the accumulation of debris.
3. Strong wear-resistance and better impact toughness.

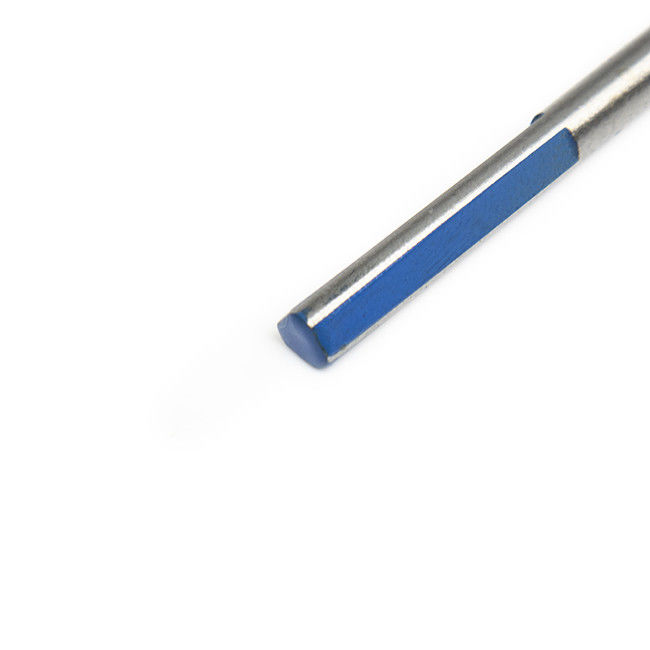

4. Triangular shank design makes it held more tightly by the electric drill and avoid the slipping.
Compatible tools
Tips
1. Marble, vitrified brick, stainless steel drilling needs to add water to cool down, and it is easy to burn the drill bit. This type of drill bit
2. It can be installed on many types of machines such as ordinary hand drills, bench drills and lithium drills. The range can be used above 10mm 3. Bawang drill not only has the function of ordinary glass ceramic drill bit, but also has the function of electric hammer drill bit. It can open holes on the cement bearing body, which solves the problem that ordinary drill bits will easily fall when they encounter large stones. Destructive
4. Please wipe clean the surface of the product after each use. If it is not used frequently, please apply anti-rust oil to prevent rust.
5. All kinds of manual tools must be installed according to the correct steps, and it is prohibited to use them before the tools are installed
Application
Picture show
Packing&Delivery
We have cooperated with DHLUPS,TNT Fedex,China Post and other sea shipping agent,thus we can quote the most economical shipping charge for you.
