| Place of Origin: | Chongqing,China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | CE;ISO9001;2015; |
| Model Number: | T-006 |
| Minimum Order Quantity: | 500 |
| Price: | $0.28-0.48/piece |
| Delivery Time: | 7-10 work day |
| Payment Terms: | T/T |
| Supply Ability: | 10,000pcs/day |
| Product: | Overlord Triangle Bit | Material: | Tungsten Carbide + Steel Shank |
|---|---|---|---|
| Type: | Gun Drill Bit | Color: | Orange Red Blue |
| Shank: | Three-flat Shank | Process: | Sinter Welded |
| Packing: | PVC Box | Size: | 4-12mm |
| High Light: | Tungsten Carbide Glass Tile Drill Bit,120mm Glass Tile Drill Bit,12mm concrete drill bit |
||

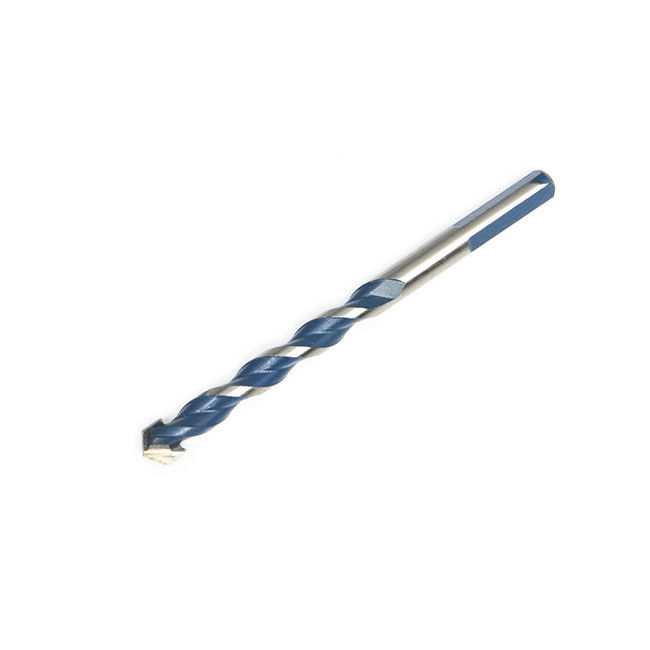

Tungsten Carbide Drill Bit Metal Drilling Bit For Drilling Concrete
Substrate made of high-quality steel is more wear-resistant,good toughness,high strength,sturdiness and durability;carbide tip,has a higher cutting speed and more wear resistance than high-speed steel.it's widely used for glass,marble,metal and concrete etc holes drilling.
Specification
| item | value |
| Place of Origin | China |
| Brand Name | ZhongZuan |
| Type | Gun Drill Bit, Twist Drill Bit |
| Use | Drilling |
| Working Length (mm) | 12mm |
| Use | Marble tile punching |
| Material | Tungsten Carbide + Steel Shank |
| Application | Drilling Holes |
| Product name | Overlord triangle bit |
| Size | 4-12mm |
| Color | Orange red blue |
| Shank | Three-flat Shank |
| Packing | PVC Box |
| Process | Sinter Welded |
| Advantage | High-efficiency |
Product parameter
| Drill Size | Hold Diameter | Total Length | Shank Diameter | Drill length |
| 4mm | 4mm | 78mm | 3mm | 36mm |
| 5mm | 5mm | 78mm | 4mm | 36mm |
| 6mm | 6mm | 100mm | 5mm | 56mm |
| 8mm | 8mm | 110mm | 6mm | 66mm |
| 10mm | 10mm | 118mm | 7mm | 71mm |
| 12mm | 12mm | 120mm | 10mm | 76mm |
Features
1. High temperature quenching treatment,high hardness,strong wear resistance and long service life.
2. High-speed operation and chip removal effectively prevent the accumulation of debris.
3. Strong wear-resistance and better impact toughness.

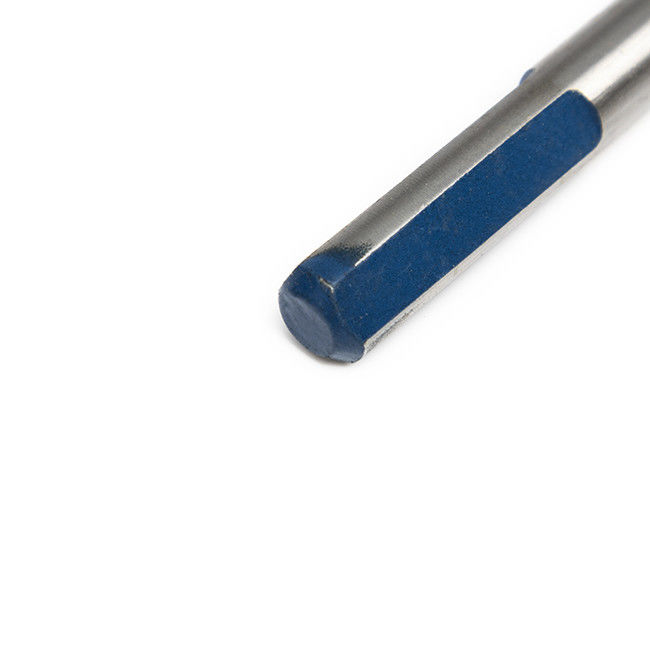

4. Triangular shank design makes it held more tightly by the electric drill and avoid the slipping.
Compatible tools
Tips
1. Marble, vitrified brick, stainless steel drilling needs to add water to cool down, and it is easy to burn the drill bit. This type of drill bit
2. It can be installed on many types of machines such as ordinary hand drills, bench drills and lithium drills. The range can be used above 10mm 3. Bawang drill not only has the function of ordinary glass ceramic drill bit, but also has the function of electric hammer drill bit. It can open holes on the cement bearing body, which solves the problem that ordinary drill bits will easily fall when they encounter large stones. Destructive
4. Please wipe clean the surface of the product after each use. If it is not used frequently, please apply anti-rust oil to prevent rust.
5. All kinds of manual tools must be installed according to the correct steps, and it is prohibited to use them before the tools are installed
Application
Packing&Delivery

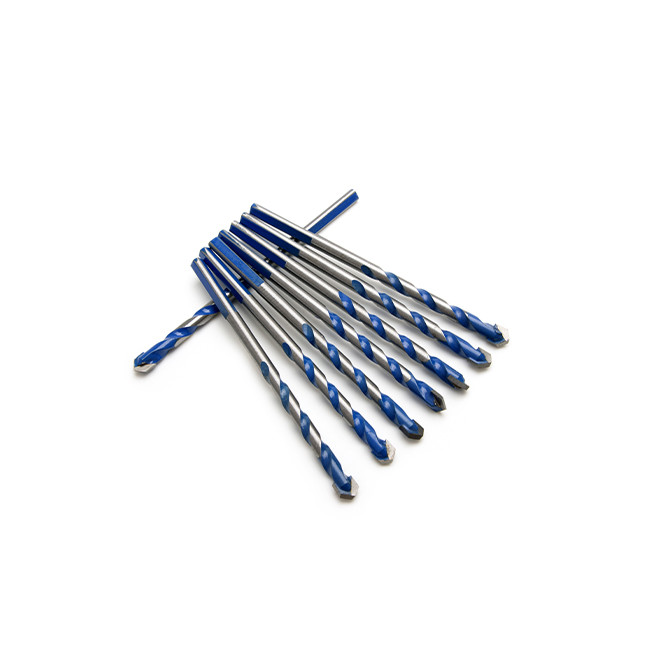

Picture show
