1/3 Shank Marble Diamond Hole Saws With Cooling Wax

1/3 Shank Marble Diamond Hole Saws With Cooling Wax

Hole saws are also called hole saws, which refer to a special circular saw for cutting circular holes in modern industry or engineering. The hole saws have different apertures and specifications according to different sizes of circles. It can be installed on electric tools such as hand drills, impact drills, and radial drills. It is simple and flexible in operation, convenient to carry, safe and versatile. It is mainly used to perform rules on various sheet pipes and curved surfaces such as chemical fiber glass, dry-strength, fiberboard, multilayer board, gypsum board, plastic products, non-ferrous metals, aluminum, steel pipe, steel pipe, copper plate, stainless steel plate, alloy material, etc. Round opening. Different hole openers have different requirements for the material of the hole. Therefore, according to different needs, choosing the right hole opener is the best. Diamond hole opener is most suitable for making holes on porcelain products and glass products

Product Description

1/3’’ hex-shank brazed diamond hole saws are made by vacuum brazed craftwork.Premium diamond raw materials help to stably and fast drill. They are mainly used to drill tile, marble and granite.Cooling wax built-in allows to dry cut directly.

Product name:	1/3"Hexagon Shank Vacuum Brazed Diamond Core drill bit
Size:	5,6,8,10,12,14mm
Use:	Drilling of tiles, marble, granite
Material:	Diamond/45#steel
Shank:	1/3"Hex shank
Colour:	Black, customized colors
Diamond height:	15mm







Product parameter

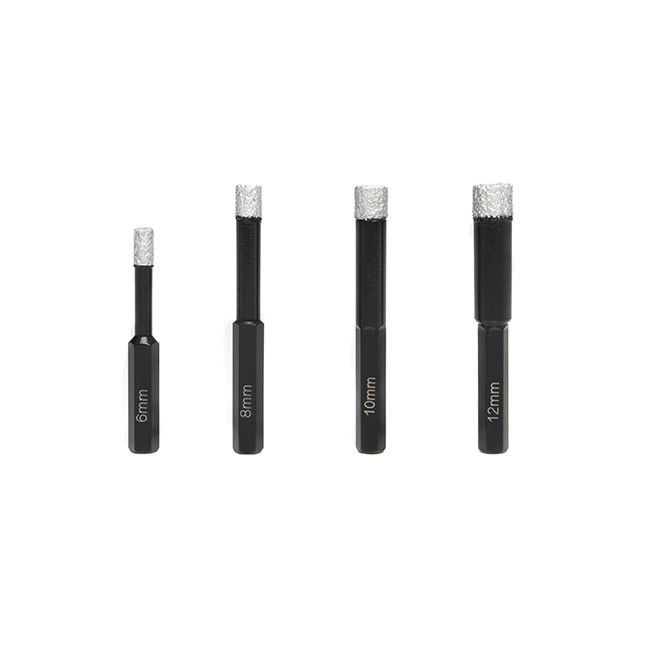

Diameter(mm)	Diameter(inch)	Diamond height	Depth of opening	Total length
5	13/64	15mm	34mm	66mm
6	15/64	15mm	34mm	66mm
8	5/16	15mm	43mm	80mm
10	25/64	15mm	43mm	80mm
12	15/32	15mm	43mm	80mm
14	35/64	15mm	43mm	80mm

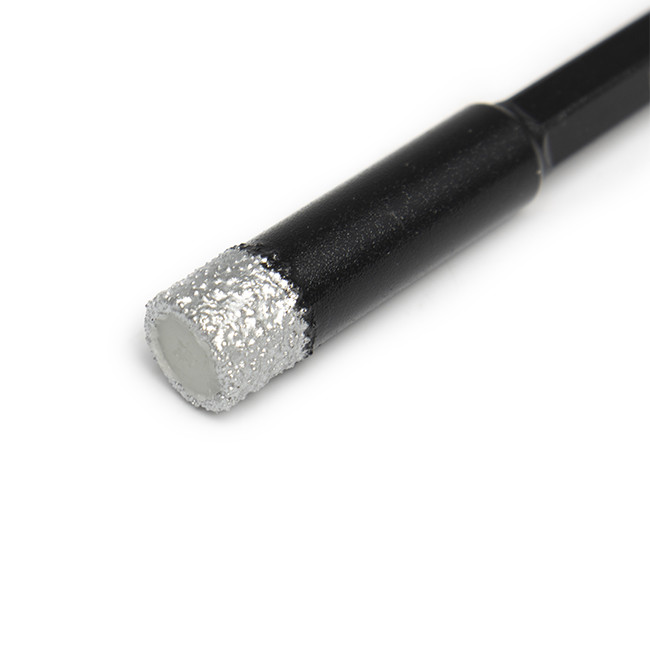

High quality diamond raw materials

Vacuum brazing of fully high-quality diamond at high temperature quenching makes it more sharp on drilling.











Built-in cooling wax

Cooling wax is inlaid inside of the bit head which can cool heat when dry cut the holes.











1/3’’ hex shank

Hex shank allows it to be held tightly by electric drills or bench drills.
