| Place of Origin: | Chongqing,China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | CE;ISO9001;2015; |
| Model Number: | G-16 |
| Minimum Order Quantity: | 500 |
| Price: | USD1.92-USD14.13/piece |
| Delivery Time: | 7-10 work day |
| Payment Terms: | T/T |
| Supply Ability: | 10,000pcs/day |
| Product Name: | Dry/Wet M14 Diamond Hole Saw | Materail: | Diamond + 45 # Steel |
|---|---|---|---|
| Shank: | Thread Shank | Application: | Marble Granite Other Stones |
| Diamond Height: | 10/15mm | Size: | 6-100mm |
| Certificate: | CE;ISO9001;2015 | Package: | PVC Box,aluminum Case |
| High Light: | 100mm Diamond Hole Saws,M14 Brazing Diamond Hole Saws,15mm dry core drill bits |
||

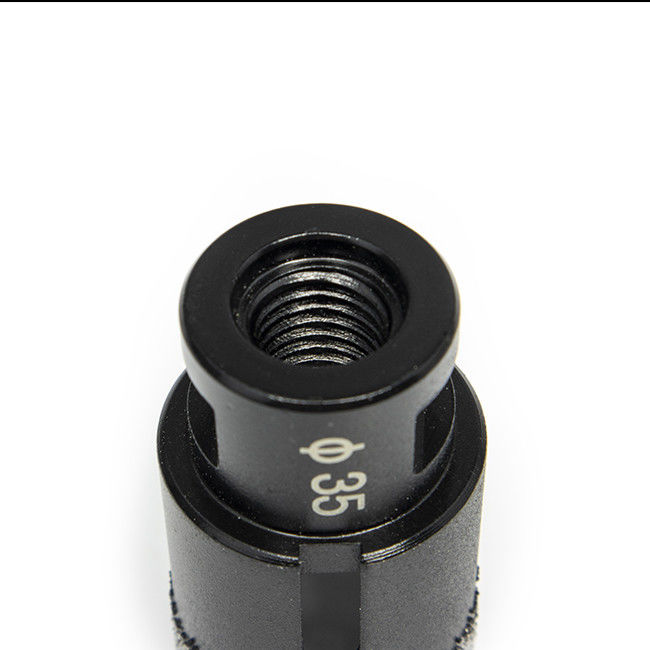

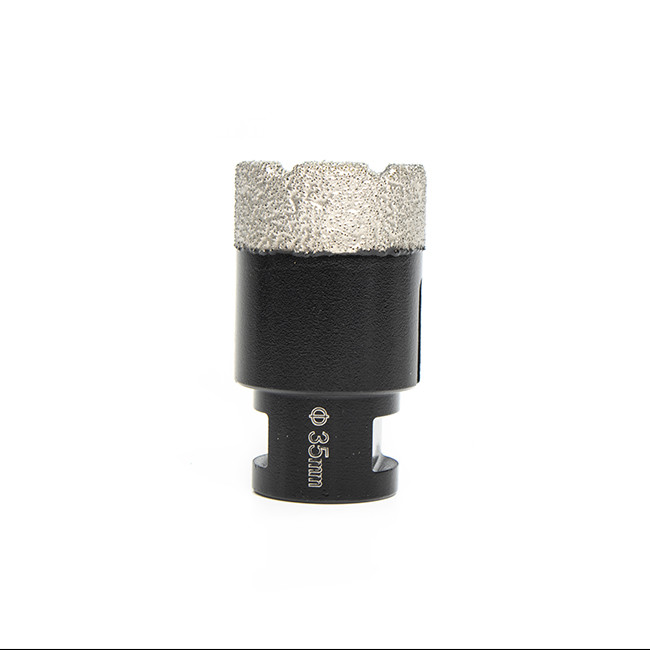

35mm M14 Brazing Vitrified Tile Core Drill Bits Diamond Hole Saws
1. Vacuum Brazed:More Heavy Duty and Wear Resistant than electroplated diamond bit, provide very high efficiency,cuts faster,durable and sturdy
2. Special Design: U-Shape Chip Flutes at both Sides of Drill Bit for fast Removing Stone Chips and Improve drilling efficiency
3. General Purpose:Drilling for granite & marble, masonry, concrete, tile/ceramic, glass, hard plastic, compatible with most angle grinder/driller
4. Recommendation:Wet/Dry drilling both OK, Use water for longer work life and higher efficiency.
| Product name: | M14 vacuum brazed diamond hole saw | |||
| Use: | Drilling of tiles, marble, granite | |||
| Material: | Diamond+45#steel | |||
| Shank: | M14 thread | |||
| Colour: | Black, orange, blue, gold, customized colors | |||
| Diamond height: | 10mm,15mm | |||
Product Parameter
| Diameter(mm) | Diameter(inch) | Diamond height | Depth of opening | Total length |
| 6 | 15/64 | 10/15mm | 35mm | 62mm |
| 8 | 5/16 | 10/15mm | 35mm | 62mm |
| 10 | 25/64 | 10/15mm | 35mm | 62mm |
| 12 | 15/32 | 10/15mm | 35mm | 62mm |
| 14 | 35/64 | 10/15mm | 35mm | 62mm |
| 16 | 5/8 | 10/15mm | 35mm | 62mm |
| 18 | 45/64 | 10/15mm | 35mm | 62mm |
| 20 | 25/32 | 10/15mm | 40mm | 62mm |
| 22 | 55/64 | 10/15mm | 40mm | 62mm |
| 25 | 63/64 | 10/15mm | 40mm | 62mm |
| 28 | 1 3/16 | 10/15mm | 40mm | 62mm |
| 30 | 1 17/64 | 10/15mm | 40mm | 62mm |
| 32 | 1 3/8 | 10/15mm | 40mm | 62mm |
| 35 | 1 17/64 | 10/15mm | 40mm | 62mm |
| 38 | 1 1/2 | 10/15mm | 40mm | 62mm |
| 40 | 1 37/64 | 10/15mm | 40mm | 62mm |
| 45 | 1 49/64 | 10/15mm | 40mm | 62mm |
| 50 | 1 31/32 | 10/15mm | 40mm | 62mm |
| 55 | 2 11/64 | 10/15mm | 40mm | 62mm |
| 60 | 2 23/64 | 10/15mm | 40mm | 62mm |
| 65 | 2 9/16 | 10/15mm | 40mm | 62mm |
| 70 | 2 3/4 | 10/15mm | 40mm | 62mm |
| 75 | 2 61/64 | 10/15mm | 40mm | 62mm |
| 80 | 3 5/32 | 10/15mm | 40mm | 62mm |
| 85 | 3 11/32 | 10/15mm | 40mm | 62mm |
| 100 | 3 15/16 | 10/15mm | 40mm | 62mm |
Complete specifications, if you need custom sizes, please contact us for more information!
Application
Package&Delivery
We have cooperated with DHLUPS,TNT Fedex,China Post and other sea shipping agent,thus we can quote the most economical shipping charge for you.
