| Place of Origin: | Chongqing,China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | CE;ISO9001;2015; |
| Model Number: | G-16 |
| Minimum Order Quantity: | 500 |
| Price: | USD1.92-USD14.13/piece |
| Delivery Time: | 7-10 work day |
| Payment Terms: | T/T |
| Supply Ability: | 10,000pcs/day |
| Product Name: | M14 Thread Diamond Hole Saw | Materail: | Diamond + 45 # Steel |
|---|---|---|---|
| Shank: | Thread Shank | Application: | Marble Granite Composite Materials |
| Technology: | Vacuum Brazing | Certificate: | CE;ISO9001;2015 |
| Size: | 6-100mm | Package: | PVC Box |
| High Light: | M14 stone cutting hole saw,Brazed stone cutting hole saw,40mm tile hole cutter |
||

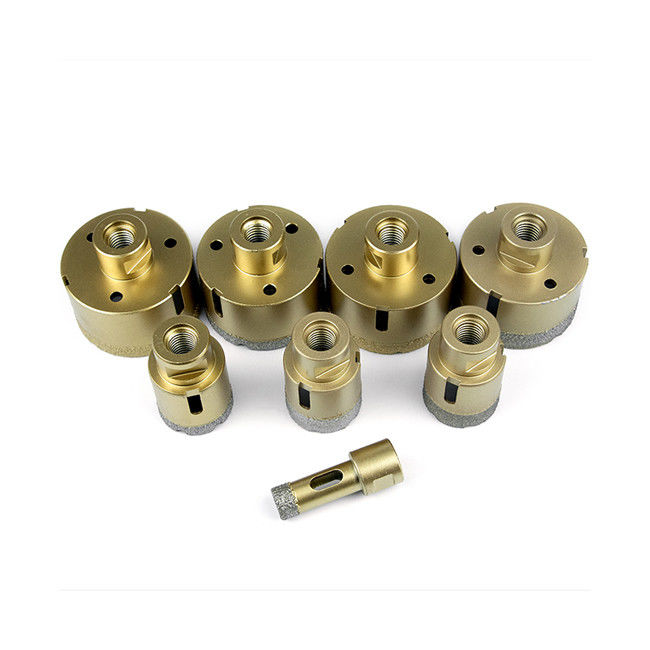

M14 Brazed Tile Hole Cutter Diamond Hole Saws
1. Select high-quality diamond raw materials and drill fast and stably.
2. Vacuum brazed craftwork allows it to work stably in high-heat condition and no need to add water cooling.
3. M14 thread brazed diamond hole saws are used to drill tile, marble, ceramic, microlite, granite etc.They can dry drill where water is not suitable to pour.
| Product name: | M14 vacuum brazed diamond hole saw | |||
| Use: | Drilling of tiles, marble, granite | |||
| Material: | Diamond+45#steel | |||
| Shank: | M14 thread | |||
| Colour: | Black, orange, blue, gold, customized colors | |||
| Diamond height: | 10mm,15mm | |||
Product Parameter
| Diameter(mm) | Diameter(inch) | Diamond height | Depth of opening | Total length |
| 6 | 15/64 | 10/15mm | 35mm | 62mm |
| 8 | 5/16 | 10/15mm | 35mm | 62mm |
| 10 | 25/64 | 10/15mm | 35mm | 62mm |
| 12 | 15/32 | 10/15mm | 35mm | 62mm |
| 14 | 35/64 | 10/15mm | 35mm | 62mm |
| 16 | 5/8 | 10/15mm | 35mm | 62mm |
| 18 | 45/64 | 10/15mm | 35mm | 62mm |
| 20 | 25/32 | 10/15mm | 40mm | 62mm |
| 22 | 55/64 | 10/15mm | 40mm | 62mm |
| 25 | 63/64 | 10/15mm | 40mm | 62mm |
| 28 | 1 3/16 | 10/15mm | 40mm | 62mm |
| 30 | 1 17/64 | 10/15mm | 40mm | 62mm |
| 32 | 1 3/8 | 10/15mm | 40mm | 62mm |
| 35 | 1 17/64 | 10/15mm | 40mm | 62mm |
| 38 | 1 1/2 | 10/15mm | 40mm | 62mm |
| 40 | 1 37/64 | 10/15mm | 40mm | 62mm |
| 45 | 1 49/64 | 10/15mm | 40mm | 62mm |
| 50 | 1 31/32 | 10/15mm | 40mm | 62mm |
| 55 | 2 11/64 | 10/15mm | 40mm | 62mm |
| 60 | 2 23/64 | 10/15mm | 40mm | 62mm |
| 65 | 2 9/16 | 10/15mm | 40mm | 62mm |
| 70 | 2 3/4 | 10/15mm | 40mm | 62mm |
| 75 | 2 61/64 | 10/15mm | 40mm | 62mm |
| 80 | 3 5/32 | 10/15mm | 40mm | 62mm |
| 85 | 3 11/32 | 10/15mm | 40mm | 62mm |
| 100 | 3 15/16 | 10/15mm | 40mm | 62mm |
Complete specifications, if you need custom sizes, please contact us for more information!
Application
Picture show
