| Place of Origin: | Chongqing,China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | CE;ISO9001;2015; |
| Model Number: | G-14 |
| Minimum Order Quantity: | 500 |
| Price: | EXW $1.24/piece |
| Delivery Time: | 7-10 work day |
| Payment Terms: | T/T |
| Supply Ability: | 10,000pieces/day |
| Product: | 1/3'' Brazed Diamond Hole Saw | Material: | Diamond + 45 # Steel |
|---|---|---|---|
| Shank: | 1/3'' Hex Shank | Size: | 5-14mm |
| Packing: | PVC Box | Place Of Origin: | Chongqing,China |
| Type: | Core Drill Bit | Color: | Black |
| High Light: | Hex Shank Diamond Core Bit,14mm diamond hole saw antiwear,10mm diamond core drill bit |
||

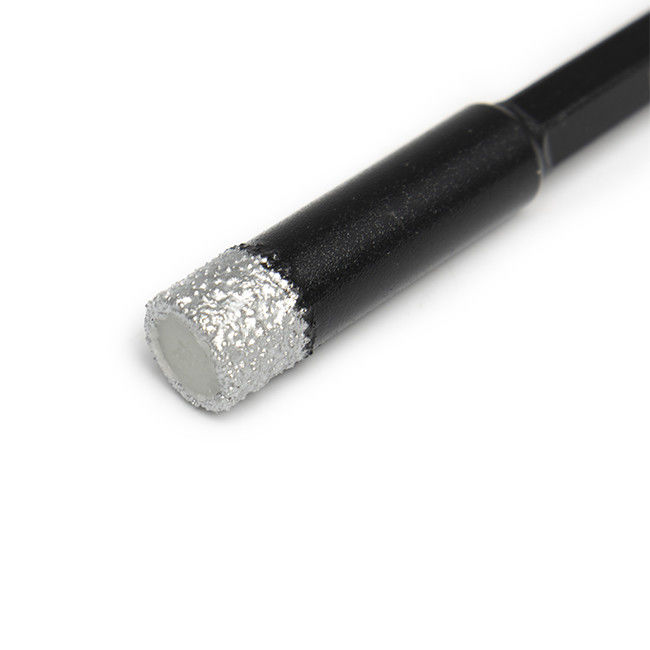

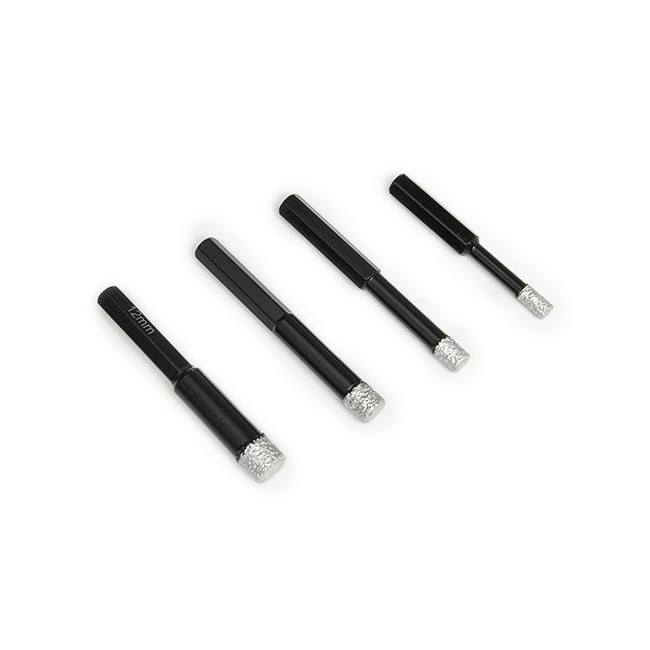

1/3'' Hex Shank Wax Inlaid Diamond Hole Saw For Granite Marble Drilling
1. A grade diamond crystals for high performance ,and using special cutting structure, making the core bit works stably.It could be maintained higher drilling speed during the core bits rotaries drilling
2. Using high performance compound piece combination , enhances the core drill bit's life.
3. The highly polised cutter could reduce the frictional resistance and quicked discharge fragment so that improve the drilling efficiency.
4. Diamond core drill bits suitable for dry and wet drilling
5. Using widely ,mainly used for drilling and engraving Marble,Granite,Sandstone,Limestone,etc
Company profile
ZhongZuan Tools is a professional manufacturer of drill bit, hole saw and diamond tools with 26-year industrial experience.We provide you with a range of power tools accessories for metal,glass,ceramics,marble,granite etc materials cutting. Core products cover diamond hole saw,diamond blade saw,diamond polishing pad,HSS drill bit,bi-metal hole saw,carbide drill bit and hole saw as well as other hand tools like glass cutter,glass suction cup. We have gained rich experience in our products’ design,manufacturing and use so that we can produce suitable products for any complicated processing conditions.ZhongZuan Tools always brings our customers best solutions to solve their any problems in application. We’re committed to improving our products quality and our management level.Always fight for becoming a harmoniously-developing modern enterprise with premium products from advanced technology and customers’ satisfaction.
| Product name: | 1/3"Hexagon Shank Vacuum Brazed Diamond Core drill bit | |||||
| Size: | 5,6,8,10,12,14mm | |||||
| Use: | Drilling of tiles, marble, granite | |||||
| Material: | Diamond /45#steel | |||||
| Shank: | 1/3"Hex shank | |||||
| Colour: | Black, customized colors | |||||
| Diamond height: | 15mm | |||||
Product Parameter
| Diameter(mm) | Diameter(inch) | Diamond height | Depth of opening | Total length |
| 5 | 13/64 | 15mm | 34mm | 66mm |
| 6 | 15/64 | 15mm | 34mm | 66mm |
| 8 | 5/16 | 15mm | 43mm | 80mm |
| 10 | 25/64 | 15mm | 43mm | 80mm |
| 12 | 15/32 | 15mm | 43mm | 80mm |
| 14 | 35/64 | 15mm | 43mm | 80mm |
Features
1. Premium Diamond and 45# steel raw material: Vacuum brazing of fully high-quality diamond at high temperature quenching makes it more sharp on drilling.
2. Built-in cooling wax: Cooling wax is inlaid inside of the bit head which can cool heat when dry cut the holes.
3.1/3'' hex shank: Hex shank allows it to be held tightly by electric drills or bench drills
Application&Tools
