| Place of Origin: | Chongqing,China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | CE;ISO9001;2015; |
| Model Number: | G-14 |
| Minimum Order Quantity: | 500 |
| Price: | EXW $1.24/piece |
| Delivery Time: | 7-10 work day |
| Payment Terms: | T/T |
| Supply Ability: | 10,000pieces/day |
| Product: | Core Drill Bit | Material: | Diamond+steel |
|---|---|---|---|
| Working Condition: | Wet Or Dry | Certificate: | CE;ISO9001;2015 |
| Processing: | Vacumm Brazed | Color: | Black, Customized Colors |
| Size: | 5-14mm | Application: | Marble Granite |
| High Light: | 1/3'' Diamond Core Drill Bits,Diamond Core Bit 14mm,drill bit for granite and marble |
||
1/3'' shank Dry drill Granite Marble Diamond Core Drill Bits Diamond Hole Saws
1. Premium Diamond and 45# steel raw material: Vacuum brazing of fully high-quality diamond at high temperature quenching makes it more sharp on drilling.
2. Built-in cooling wax: Cooling wax is inlaid inside of the bit head which can cool heat when dry cut the holes.

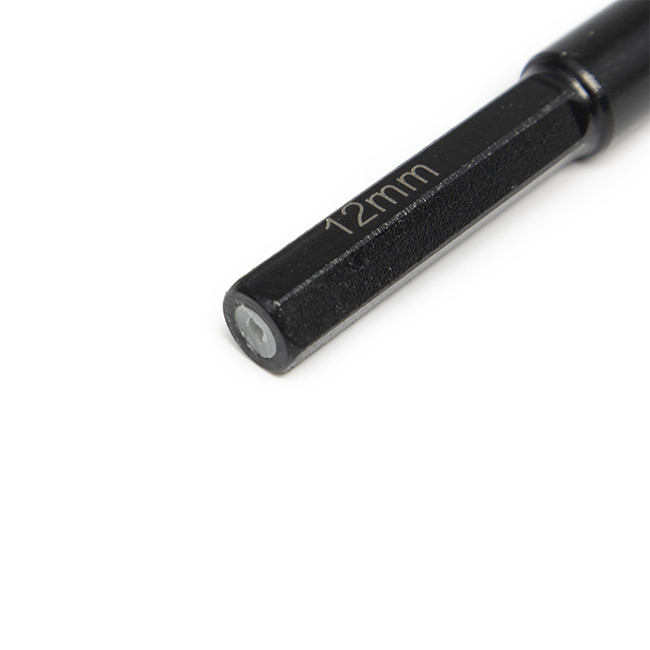

3.1/3'' hex shank: Hex shank allows it to be held tightly by electric drills or bench drills
Company profile
1. 26-year Industrial experience and covers area of 11700㎡ with 6 workshops
2. Procucts can be made as you required and OEM/ODM
3. Free samples can be sent for evaluation
4. Professional before&after-sales teams 24h-online to solve your any technical problems.
Product Description
1/3’’ hex-shank brazed diamond hole saws are made by vacuum brazed craftwork.Premium diamond raw materials help to stably and fast drill. They are mainly used to drill tile, marble and granite.Cooling wax built-in allows to dry cut directly.
| Product name: | 1/3"Hexagon Shank Vacuum Brazed Diamond Core drill bit | |||||
| Size: | 5,6,8,10,12,14mm | |||||
| Use: | Drilling of tiles, marble, granite | |||||
| Material: | Diamond /45#steel | |||||
| Shank: | 1/3"Hex shank | |||||
| Colour: | Black, customized colors | |||||
| Diamond height: | 15mm | |||||
Product Parameter
| Diameter(mm) | Diameter(inch) | Diamond height | Depth of opening | Total length |
| 5 | 13/64 | 15mm | 34mm | 66mm |
| 6 | 15/64 | 15mm | 34mm | 66mm |
| 8 | 5/16 | 15mm | 43mm | 80mm |
| 10 | 25/64 | 15mm | 43mm | 80mm |
| 12 | 15/32 | 15mm | 43mm | 80mm |
| 14 | 35/64 | 15mm | 43mm | 80mm |
Application&Tools

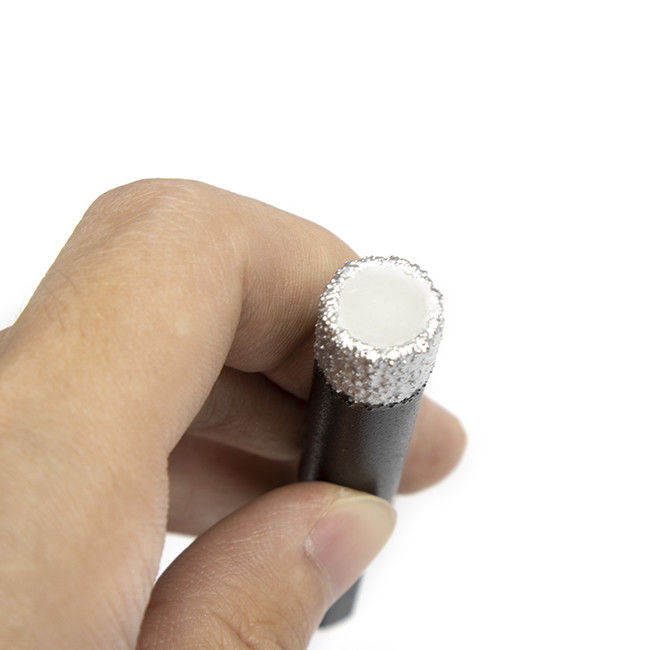

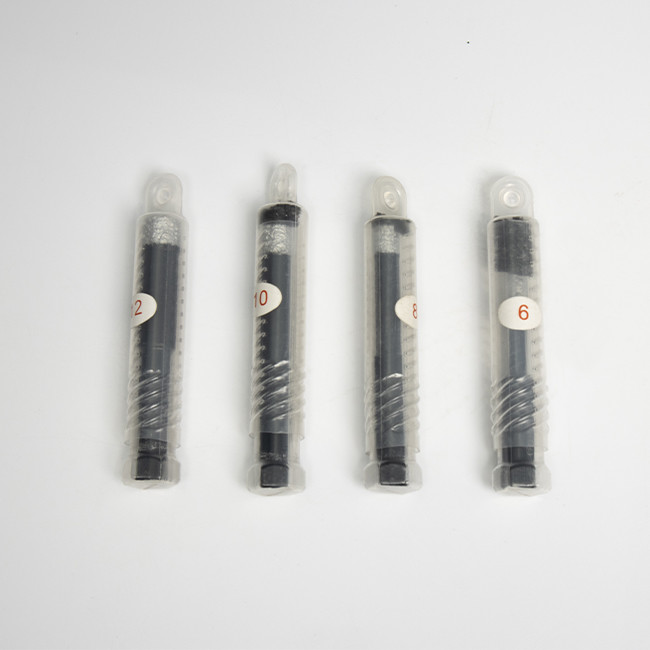

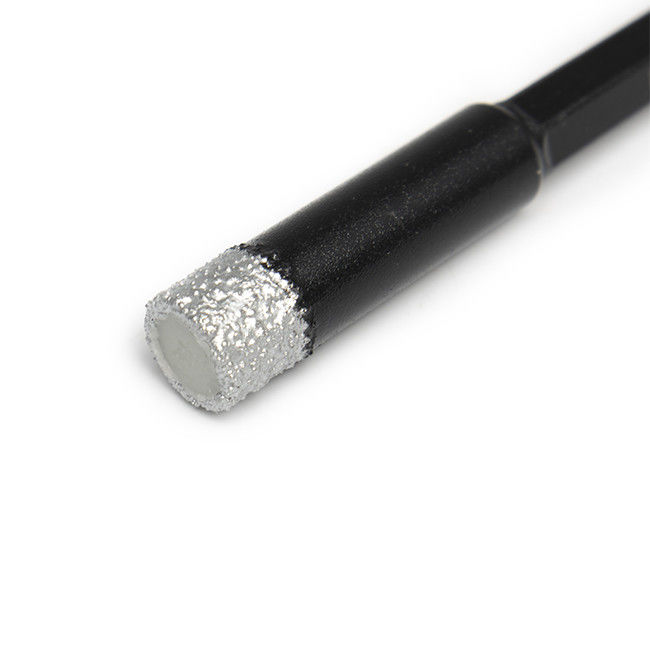

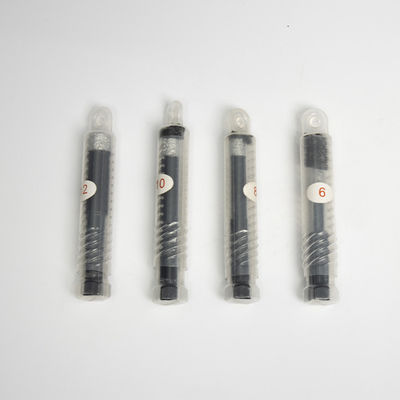

Picture show
