| Place of Origin: | Chongqing, China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | ISO9001: 2015 |
| Minimum Order Quantity: | 100 pcs |
| Price: | $1.06-3.1/piece |
| Packaging Details: | Plastic box |
| Delivery Time: | 7-10 workday |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10,000 pcs/day |
| Product Name: | Multi Straight Groove Step Up Cone Drill Bits | Material: | HSS6542 4341 M35 |
|---|---|---|---|
| Shank Diameter: | 6 8 10 13mm | Application: | Suitable For Thin Iron Plate, Copper Plate, Aluminum Plate, PVC Plastic Plate, Stainless Steel Drilling, Reaming, Deburring |
| Point Angel: | 118 | Shank Type: | Triangle Handle |
| Flute Type: | Straight Groove | Feature: | High Efficiency And Long Life |
| High Light: | Multi Straight Groove HSS Drill Bit,35mm HSS Drill Bit,Twist Step Up Cone Drill Bits |
||

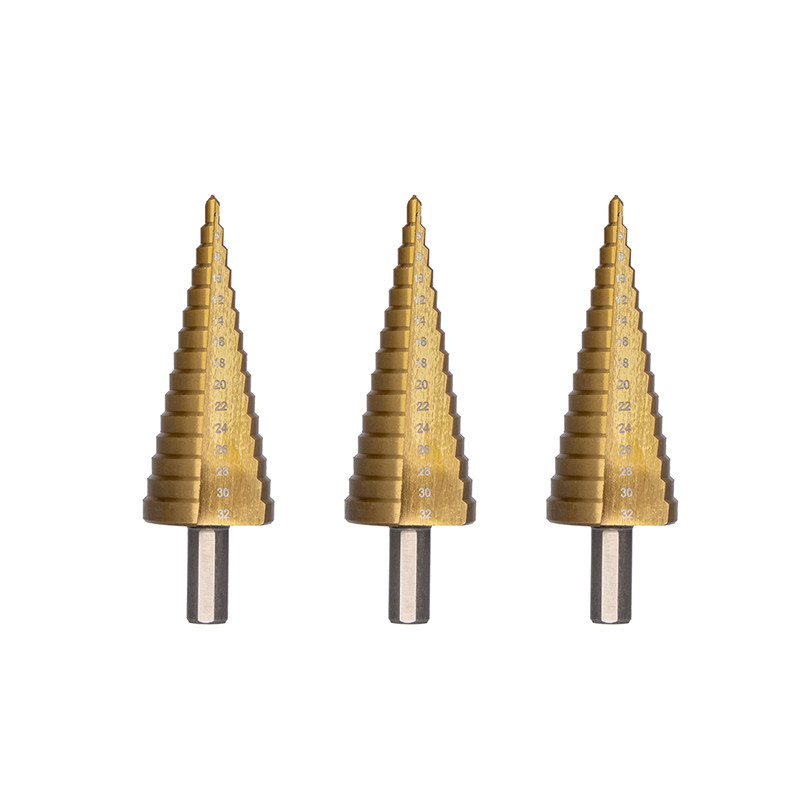

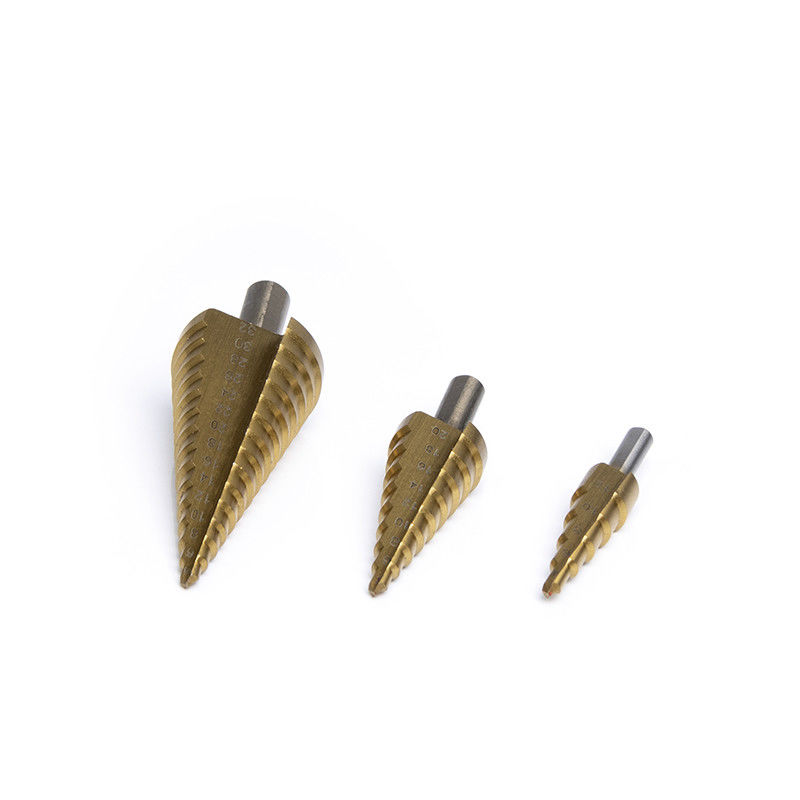

35mm Multi Straight Groove Twist Step Up Cone Drill Bits For Wood drilling
Multi step up drill, also known as step drill bit or pagoda drill, is mainly used for drilling thin steel plates within 3mm. One drill bit can be used instead of multiple drill bits. Holes with different diameters can be processed according to the needs, and the large holes can be processed at one time without changing the drill bit and drilling the positioning holes.
specification
| Type | Hss Drill Bit |
| Shank Diameter | 6-13 mm |
| Materail | High Speed Steel 4341 6542 M35 |
| Application | Suitable for thin iron plate, copper plate, aluminum plate, PVC plastic plate, stainless steel drilling, reaming, deburring |
| Flute Type | Straight groove |
| Shank Type | Triangle handle |
| Applicable Machine | Drilling machines, bench drills, hand drills and other tools |
|
OEM Brand |
OEM Brand |
Features
1. High speed steel cone drill bit using high-quality high-speed steel raw materials, CBN full grinding manufacturing;
2. Suitable for processing various metal materials;
3. The most ideal drill for automobile processing, aerospace, sheet metal processing, electrical installation and maintenance and other industries.
Size Information
| Size | Step Num | Total Length | Shank Length | Shank Diameter |
| 4-12mm | 5 | 62 | 22 | 6 |
| 4-12mm | 9 | 71 | 22 | 6 |
| 4-20mm | 9 | 71 | 22 | 8 |
| 4-22mm | 10 | 85 | 22 | 8 |
| 6-30mm | 13 | 93 | 22 | 10 |
| 4-32mm | 14 | 99 | 23 | 10 |
| 4-39mm | 13 | 108 | 25 | 10 |
| 5-35mm | 13 | 73 | 25 | 13 |
| 10-45mm | 9 | 98 | 25 | 13 |
| 6-60mm | 12 | 113 | 25 | 13 |
Application
HSS 35mm multi twist step up cone drill bit is suitable for thin iron plate, copper plate, aluminum plate, PVC plastic plate, stainless steel drilling, reaming, deburring.
Applicable Machine
Packaging & Logistics
The high-speed steel straight fluted step cone drill is packed in a plastic box by default, we can stick your logo on the inner box for free, if you needed, and the outer box is packed in a carton. In addition, all this we support customized service.
In order to deliver your goods faster and safer, we cooperate with multi-section logistics companies such as DHL, TNT, FedEx, EMS, etc.We have various transportation methods, support sea and air transportation, and strive to deliver your products to you faster and better. The delivery time from our factory to the port in China is about 2-3 days, the time for sea and air transportation is different. Air freight is about 5-15 days. Sea freight takes about 20-60 days. The specific time is related to your country region and logistics company.
FAQ
Q: Can I package my products or customize the packaging according to my requirements?
A: Absolutely! Welcome to contact our professional business team to tell us all the details of the packaging.
