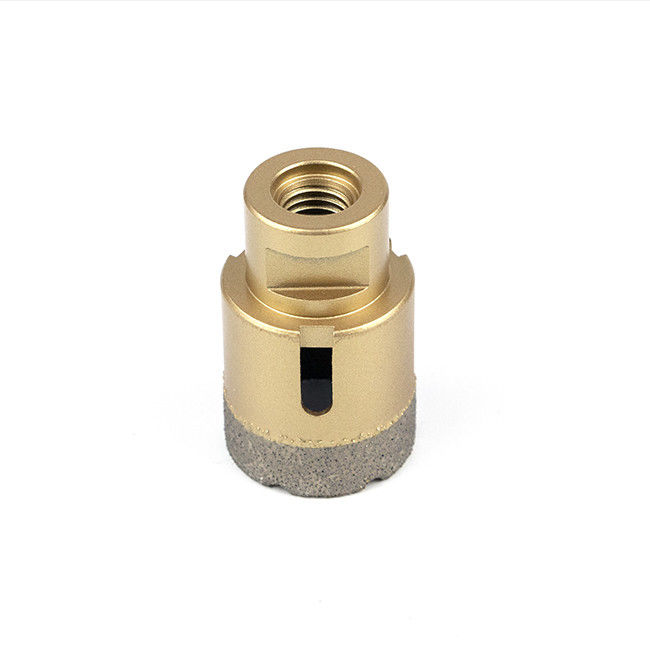

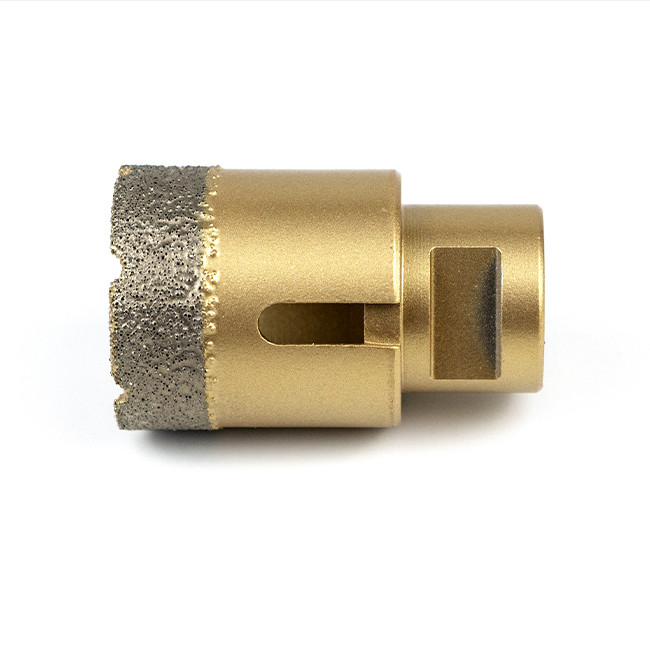

Vacuum Brazed Diamond Core Bits 20mm M14 CE

Basic Information
Place of Origin: China
Brand Name: Zhongzuan
Certification: CE
Minimum Order Quantity: 100
Price: USD 2.8-3.6 Unit price
Packaging Details: Carton
Delivery Time: 10-15 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Day
Customized Support: OEM, ODM Type: Core Drill Bit
Material: Diamond Segment Product Name: Diamond Drill Core Bit
Size: Customizable Color: Customized Color
Process: Fully Ground Shank: M14
High Light:

CE vacuum brazed diamond core drill bits

,

20mm brazed diamond core drill bit

,

M14 vacuum brazed diamond core bits

20mm M14 Vacuum Brazed Masonry Diamond Hole Saws





The M14 brazed diamond hole saw bit is made of heat-treated high-carbon steel material, which is suitable for drilling holes in hard materials such as marble, concrete, granite slabs, and all-ceramic tiles. Sharp and wear-resistant, smooth cut. It adopts M14 spiral pattern design, which is easier to fix. It can be used for both dry and wet, easy to use.





Produce parameter





   product name:
M14 brazed diamond drill bit
product material:
High Carbon Steel With Heat Treatment
Scope of application:
Ceramic tiles, marble, ceramics, quartz stone, etc.
Applicable equipment:
Various general specifications of electric drills, lithium electric drills, bench drills, etc.







Vacuum Brazed Diamond Core Bits 20mm M14 CE 0

Hole diameter
Total length
Working length
Diamond width
Thread
Diamond size
6mm
62mm
35mm
10/15mm
M14
40/50#
8mm
62mm
35mm
10/15mm
M14
40/50#
10mm
62mm
35mm
10/15mm
M14
40/50#
12mm
62mm
35mm
10/15mm
M14
40/50#
14mm
62mm
35mm
10/15mm
M14
40/50#
16mm
62mm
35mm
10/15mm
M14
40/50#
18mm
62mm
35mm
10/15mm
M14
35/40#
20mm
62mm
40mm
10/15mm
M14
35/40#
22mm
62mm
40mm
10/15mm
M14
35/40#
25mm
62mm
40mm
10/15mm
M14
35/40#
28mm
62mm
40mm
10/15mm
M14
35/40#
30mm
62mm
40mm
10/15mm
M14
35/40#
32mm
62mm
40mm
10/15mm
M14
35/40#
35mm
62mm
40mm
10/15mm
M14
35/40#
38mm
62mm
40mm
10/15mm
M14
35/40#
40mm
62mm
40mm
10/15mm
M14
35/40#
42mm
62mm
40mm
10/15mm
M14
35/40#
45mm
62mm
40mm
10/15mm
M14
35/40#
50mm
62mm
40mm
10/15mm
M14
35/40#
55mm
62mm
40mm
10/15mm
M14
35/40#
60mm
62mm
40mm
10/15mm
M14
35/40#
65mm
62mm
40mm
10/15mm
M14
35/40#
70mm
62mm
40mm
10/15mm
M14
35/40#
75mm
62mm
40mm
10/15mm
M14
35/40#
80mm
62mm
40mm
10/15mm
M14
35/40#
85mm
62mm
40mm
10/15mm
M14
35/40#
100mm
62mm
40mm
10/15mm
M14
35/40#



Vacuum Brazed Diamond Core Bits 20mm M14 CE 1

Vacuum Brazed Diamond Core Bits 20mm M14 CE 2Vacuum Brazed Diamond Core Bits 20mm M14 CE 3



Vacuum Brazed Diamond Core Bits 20mm M14 CE 4
