| Place of Origin: | Chongqing,China |
|---|---|
| Brand Name: | ZhongZuan |
| Certification: | CE;ISO9001;2015; |
| Model Number: | D-016 |
| Minimum Order Quantity: | 1000 |
| Price: | USD1.61/piece |
| Delivery Time: | 7-10 work day |
| Payment Terms: | T/T |
| Supply Ability: | 10,000piece |
| Product: | Hot Pressed Sintered Diamond Saw Blade | Diameter: | 105/115/125/180/230mm, 4" 4.5" 5" 7" 9" |
|---|---|---|---|
| Blade Width: | 10mm, 8mm | Blade Thickness: | 1.8mm |
| Arbor: | 7/8'' | Material: | Diamond Powder+Alloy Steel |
| Application: | Stone, Concrete, Brick | Package: | Double Blister |
| Process: | Hot Pressing | Certificate: | CE, ISO9001:2015 |
| High Light: | 1.8mm Stone Circular Saw Blade,Brick Stone Circular Saw Blade,115mm segmented cutting disc |
||

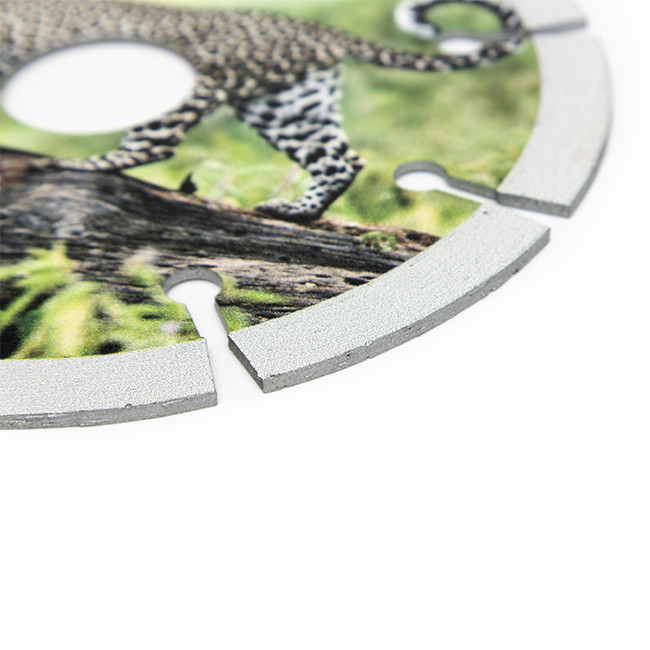

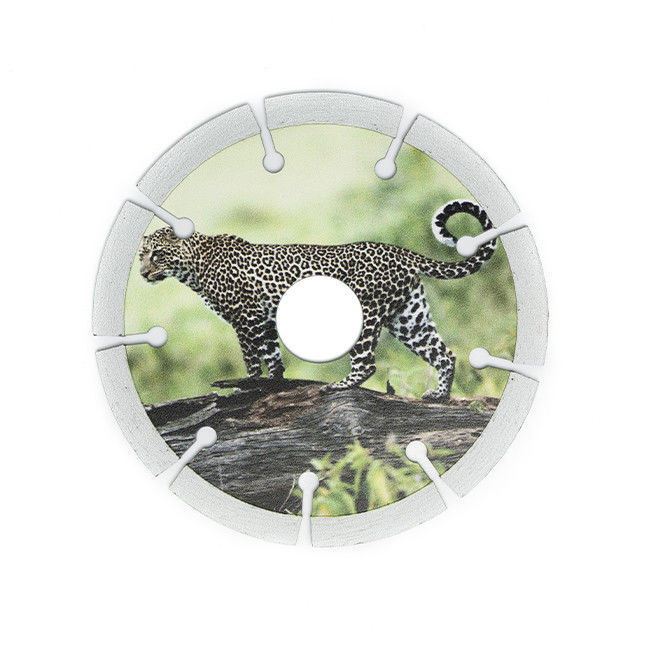

Hot-Press Segmented Sintered Diamond Stone Circular Saw Blade
Hot-press sintered diamond saw blades are used to cut stone,concrete and masonry etc.Hot-press craftwork makes it great connection,high rigidity and durability.Meanwhile it will be much safer for you to work without fearing saw blades’s teeth falling off.
Features
1. Dry or wet cutting without chips.
2. High manganese base makes it more durable and not easy to deform.
3. Hot-press craftwork makes the whole part high resilience and high stability of teeth.
4. Using premium diamond raw materials at high rigidity makes it more sharp and efficient without collapse edges.
| Product name: | Hot-pressed sintered diamond saw blade | Brand: | ZHONGZUAN | ||
| Colour: | blue,green | Diameter: | 105,115,125,180,230mm | ||
| Aperture: | 20/22.23mm | Diamond height: | 8mm,10mm | ||
| Saw blade thickness: | 1.8,2,2.2,2.6mm | Material: | Diamond + high manganese steel | ||
| Process: |
Hot pressing
|
Application: | Stone, concrete, brick | ||
| Diameter | Aperture | Blade height | Blade thickness | Crafts | Use |
| 4”(105mm) | 20/22.23mm | 8/10mm | 1.8mm | Hot press | Dry cut/wet cut |
| 4.5”(115mm) | 22.23mm | 8/10mm | 1.8mm | Hot press | Dry cut/wet cut |
| 5”(125mm) | 22.23mm | 8/10mm | 2mm | Hot press | Dry cut/wet cut |
| 7”(180mm) | 22.23mm | 8/10mm | 2.2mm | Hot press | Dry cut/wet cut |
| 9”(230mm) | 22.23mm | 8/10mm | 2.6mm | Hot press | Dry cut/wet cut |
Application
